Intelligent electric traction bed set by ZEPU with a multi-position, 6-fold bed and LCD touchscreen control offering 5 built-in treatments and 99 customizable prescriptions. Simultaneous cervical and lumbar traction, max traction force 990 kg ±20%, V-shaped occipital neck device and double over-stretch/emergency-stop protection. CE / CFDA.
Overview

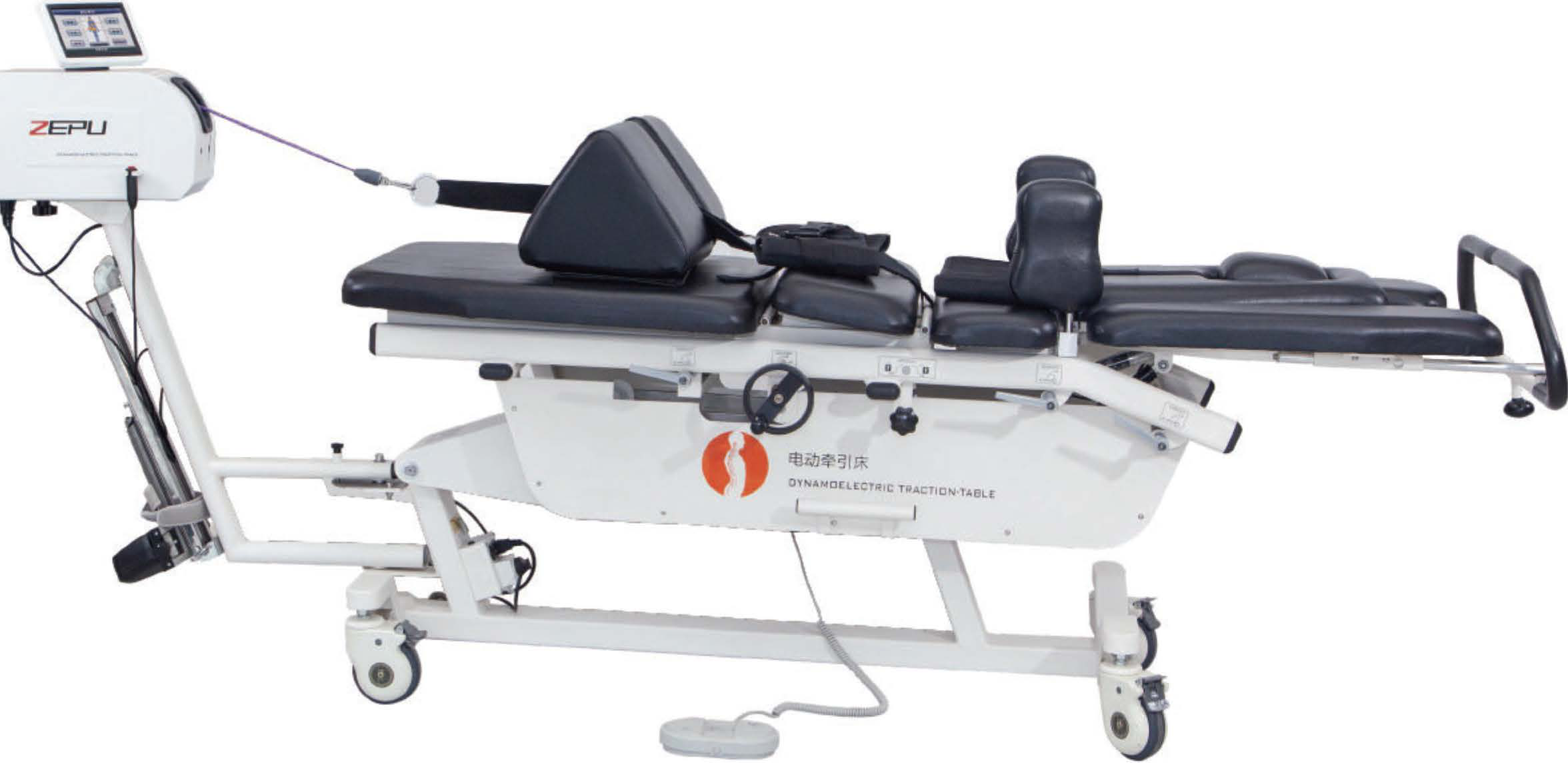

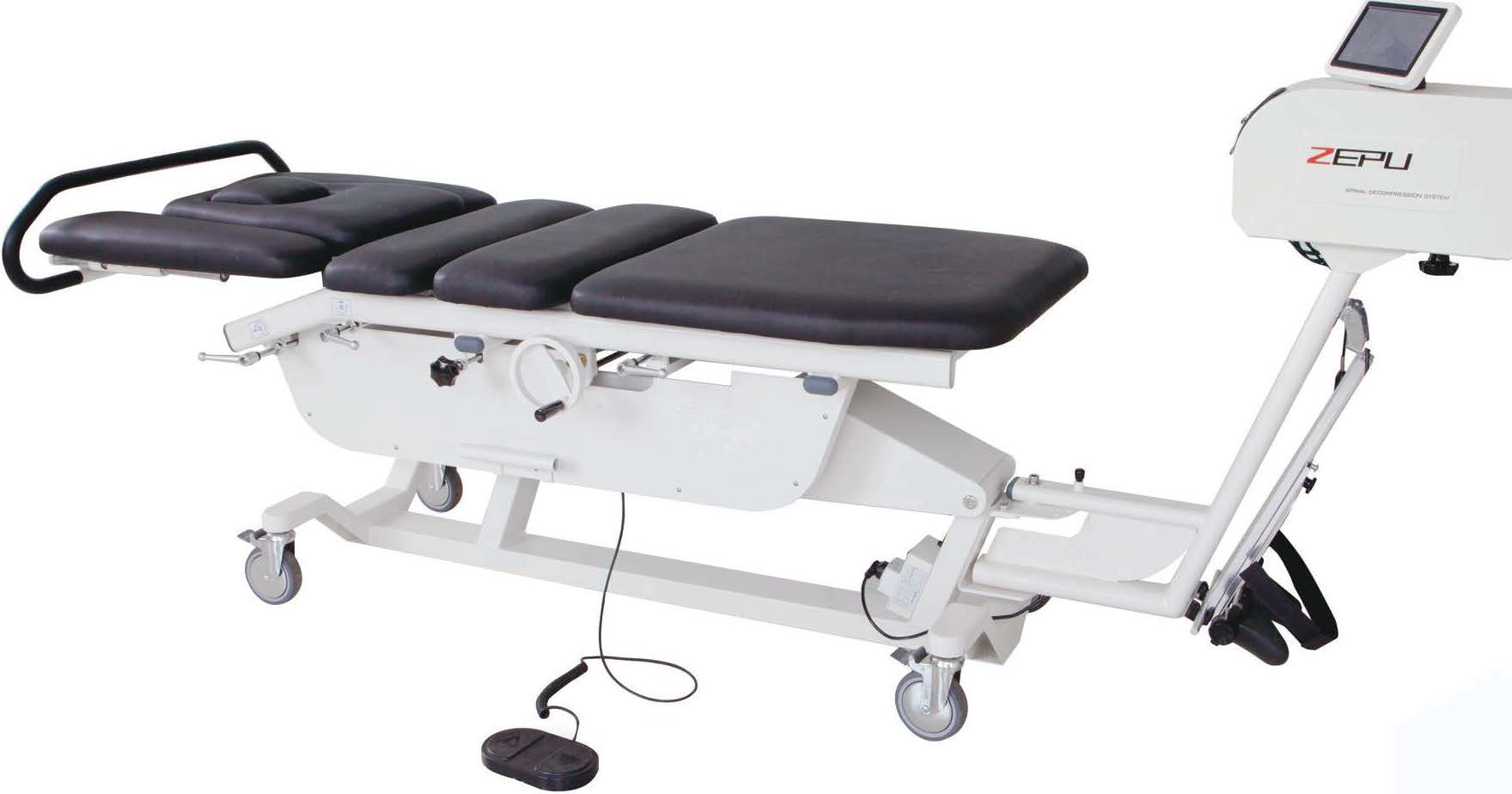

The ZEPU-TQ30 combines a multi-position bed with an intelligent control system to make traction therapy more intelligent, comfortable and efficient. It adopts an LCD touch screen with 5 built-in treatments and 99 customizable prescriptions. The bed can be smoothly lifted and lowered for precise traction-angle setting.

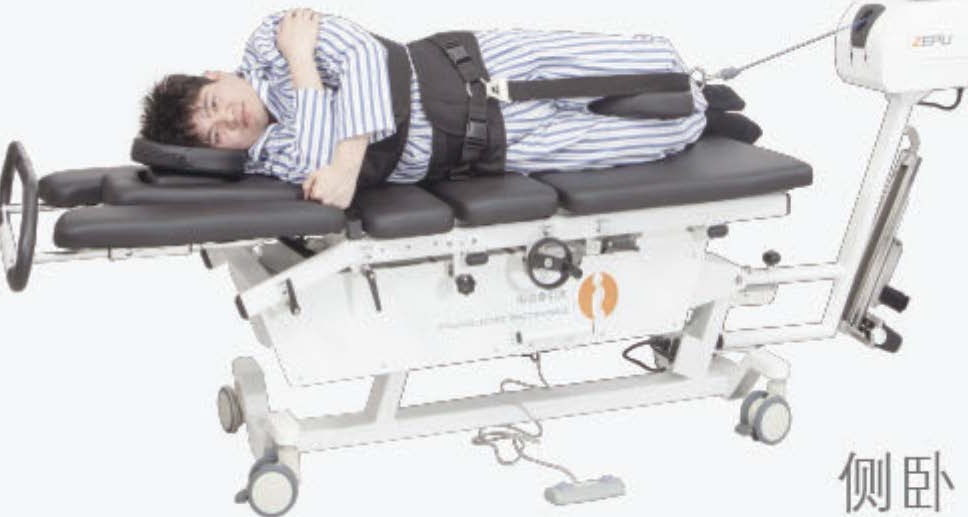

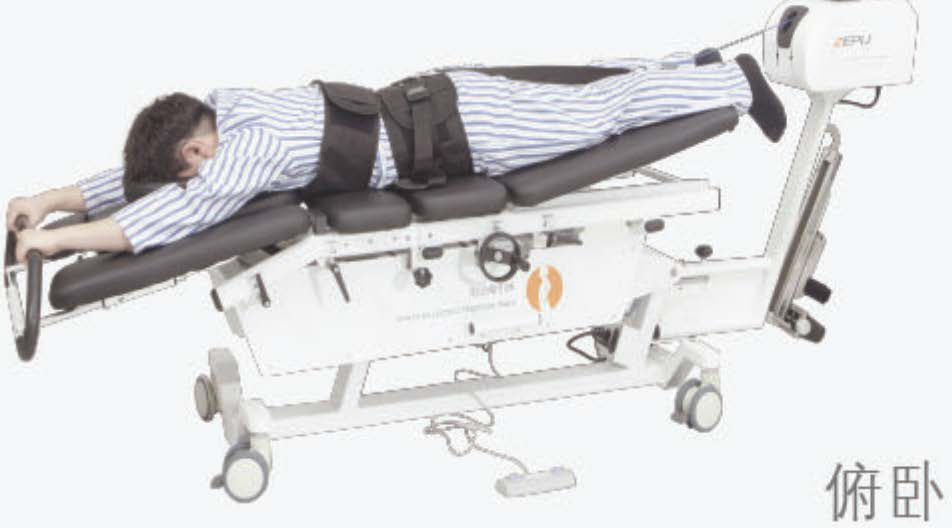

During the traction process the bed separates itself to reduce friction loss, and is adjusted in 6-fold sections to provide the best traction position for each patient. An innovative V-shaped occipital neck traction device makes neck traction safer, more comfortable and more precise. Cervical and lumbar vertebrae can be treated at the same time, and a heated bed mattress is available as an option.
Key Features
Technical Specifications
| Weight | Main frame 15 kg / Bed 122 kg |
| Size (Main frame) | 410 × 200 × 480 mm |
| Size (Bed) | 1800 × 1000 × 680–1050 mm |
| Treatment Modes | 5 internal prescriptions and 99 customizing plans |
| Max. Traction Force | 990 kg ±20% |
| Ascending Speed | 0.9–1.8 mm/sec |
| Descent Speed | 0.9–1.8 mm/sec |
| Tolerance | ±10% |
| Certification | CE / CFDA |
Clinical Protocols
Recommended starting parameters by indication. Final protocols should be set by the treating clinician.
