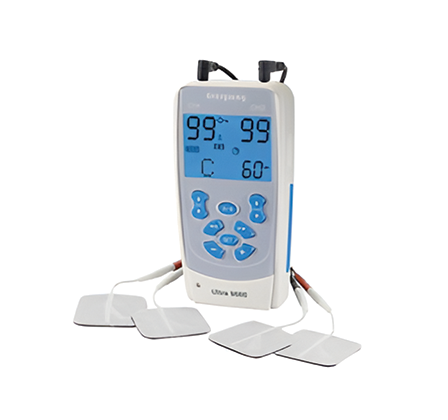

ULTRA-9000-TENS COMBINATION UNIT

TENS COMBINATION UNIT

Description

The Ultra 9000 Series is a combination unit of TENS, EMS, IF, Pelvic and Facial stimulator intended for use in pain relief, muscle training, facial palsy & incontinence treatment. It is a premium device with all the modes available in the one compact device.

Features
Five Modalities for Pain Relief, Muscle Training, Facial Palsy & Incontinence Treatment In one Unit.
Large Back lit LCD
Full Digital Press Buttons Control
Treatment Time Countdown
Adjustable Beep Sound
Lock Facility
Quick Selection of Modalities and Modes
Patient Compliance Meter
Precise Intensity Control in 60 or 99 steps
15 Adjustable Modes and 42 Preset Programs.

MODEL No: EM-9000

Additional information

MODEL No:

EM-9000

Channel:

Dual Channel

Power:

One 9V Battery or AC Power

Size:

215 grams with battery

Weight:

L=135mm W=69mm H=32mm

Modality:

TENS, EMS, IF, Pelvic & Facial Stimulation

TENS Machine / EMS (Muscle Stimulation):

TENS Machine / EMS (Muscle Stimulation):
Pulse Amplitude: Adjustable, 0-100mA peak into 500 ohm load each channel, 99 steps of intensity Control,
Wave Form: Asymmetrical Bi-phasic Square Pulse,
Voltage: 0-50V (Load: 500ohm) ,
Pulse Rate: Adjustable, 2-150 Hz, 1Hz/step, Pulse.
Width: Adjustable, 50-400 microseconds, 10 µs/step,
On Time: Adjustable, 2-90 seconds, 1 sec. /step,
Off Time: Adjustable 0-90 seconds, 1 sec. /step,
Ramp Time: Adjustable, 1-8 seconds, 1 sec. /step,
Timer: Adjustable, 1-60 minutes and C (Continuous).

IFC:

Pulse Amplitude: Adjustable, 0-60mA peak into 500 ohm load each channel, 60 steps of intensity control.
Carrier Frequency: 4000Hz fixed (CH1)
Modulating Frequency: 4004-4160Hz, Adjustable (CH2)
Voltage: 0-30V(Load: 500ohm),
IF Frequency Modes: Constant Mode: Constant stimulation, 4-160bps
Adjustable Frequency Shift: Seven modes C, 1/1 abrupt shift, 6/6 abrupt shift, 6/6 ramped, 10/10 abrupt shift, 10/10 ramped & R(Repeat) bps can be adjusted.
Auto Sweep: 4-45 bps, 80-145 bps & 4-SET bps
Sweep Time: 15 seconds,
Frequency Shift Percent: Frequency shifts from 30% below the set frequency to 60% above and then return to 30% below the set frequency.
Output Configuration: Quad polar (4 electrodes)
Wave form: Symmetrical balanced Sine wave
Interference Pulse Freq: 4-160 bps,
Adjustable, 4 bps/step
Pulse Duration: 125µs maximum
Timer: Adjustable, 1-30 minutes

Facial & Pelvic Stimulation:

P(Pulse Amplitude: Adjustable, 0-60mA peak (Load: 500ohm), 60 steps of intensity control
Wave Form: Asymmetrical Bi-phasic Square Pulse
Voltage: 0-30V(Load: 500ohm)
Programs: 6 Facial Stimulation Preset Programs, 6 Pelvic Stimulation Preset Programs The programs are not adjustable. Timers for these two modes are fixed.
