Dual-frequency 1 & 3 MHz therapeutic ultrasound by Chattanooga with full-colour 7″ touchscreen, built-in Suggested Protocol Settings (SPS), hi-resolution anatomical library and Bluetooth import/export. 5 cm applicator. CE 2797, MDD Class IIa.
Overview

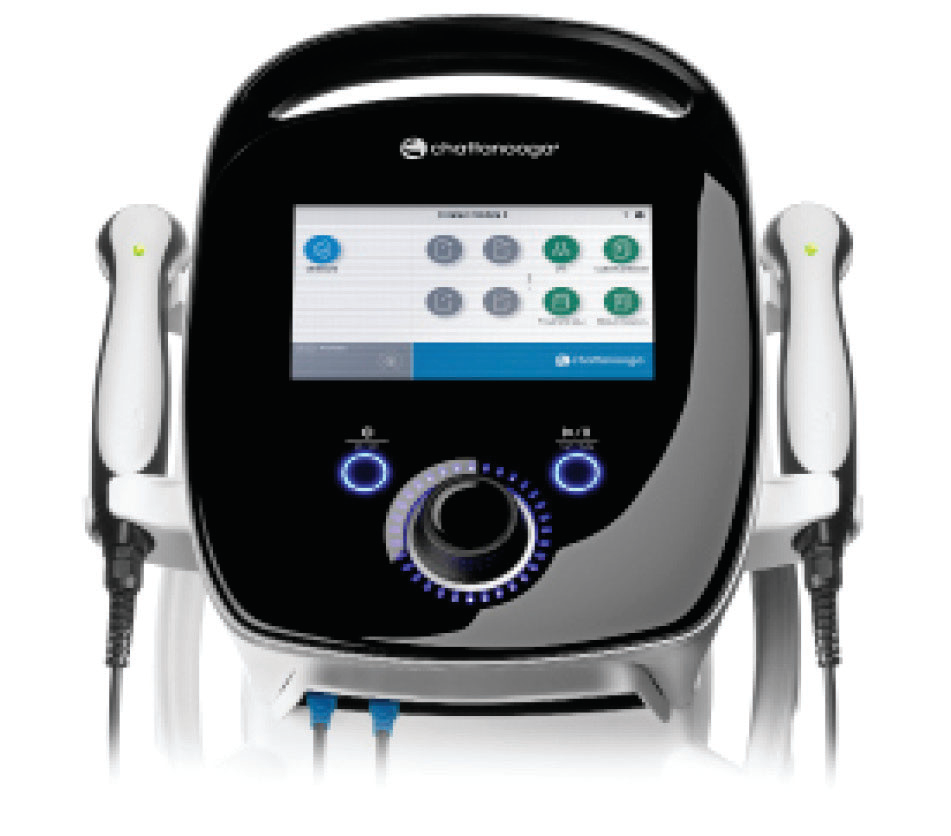

Intelect® Mobile 2 Ultrasound belongs to the next generation of therapy systems — intelligent, intuitive design paired with genuine ease of use makes it a first choice for modern clinical practice.
The Mobile 2 Ultrasound provides dual-frequency ultrasound at 1 or 3 MHz, in pulsed or continuous operating cycles (10%, 20%, 50% and 100%). It comes with a 5 cm ultrasound head, and treatment-area guidelines are available directly at the user interface. Built-in Suggested Protocol Settings (SPS) draw on current clinical evidence, while a hi-resolution anatomical library supports clear patient explanation.
Key Features
Technical Specifications
| Specification | Detail |
|---|---|
| Main input voltage | 100–240V AC, 1.0 to 0.42A, 50/60Hz |
| Electrical class | Class II |
| Mode of operation | Continuous |
| Dimensions | 340 x 355 x 150 mm |
| Weight | 2.8 kg |
| Conformity | EN/IEC 60601-1, 60601-1-11, CAN/CSA-C22.2 No.601.1, UL Std No 60601-1 |
| Certification | CE 2797, MDD Class IIa device, 93/42 60601-1 |
| Display | 7" full-color high-resolution touch screen |
| Parameter | Detail |
|---|---|
| Frequency | 1MHz; 3MHz |
| Duty cycles | 10%, 20%, 50%, Continuous |
| Pulse repetition rate | 16, 48, or 100 Hz |
| Pulse duration | 1–31.25 ms (Max ON: 31.25ms / Min OFF: 5ms) |
| FREQUENCY | 1MHz; 3 MHz |
| DUTY CYCLES | 10%, 20%, 50%, Continuous |
| PULSE REPETITION RATE | 16,48, or 100 Hz |
|
PULSE DURATION |
1-31.25 ms
- Max (ON): 31.25 ms - Min (OFF): 5 ms |
| Code | Description |
|---|---|
| CHA 15-1201 | Intelect Mobile 2 Ultrasound |
| CHA 15-1136 | Intelect Mobile 2 System Cart |
