Dual-frequency 1 & 3.3 MHz ultrasound therapy unit by GBO with bioinert titanium treatment heads (2.5 & 5 cm²), 10.1″ TFT LCD touchscreen, continuous plus five pulsed modes and customisable stored programmes. CE Class IIa.
Overview

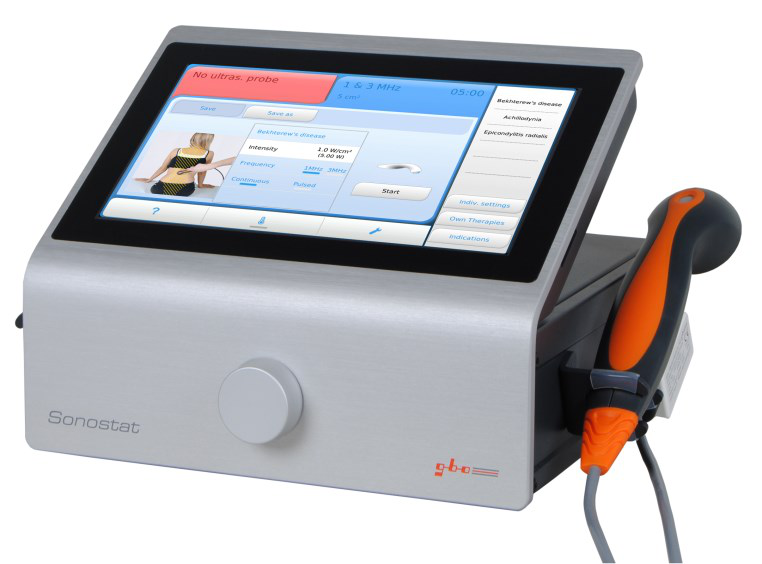

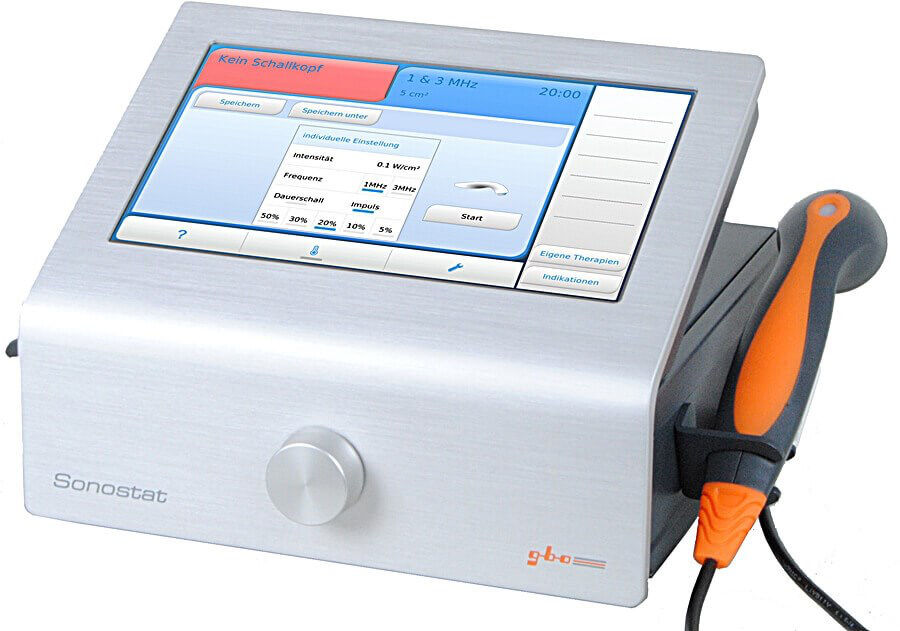

The Sonostat® delivers powerful ultrasonic therapy at 1 MHz and 3.3 MHz, offering a high degree of functionality and operating convenience for universal ultrasound treatment. Its ergonomically designed, 100% watertight treatment heads — available in 2.5 cm² or 5 cm² — are made of high-quality titanium. Unlike conventional aluminium heads, titanium is bioinert (100% gentle to the skin), more robust and durable, and does not tarnish. Both head sizes can be connected to the unit at the same time.
The desired treatment head is activated by a mere touch on the screen, and both head types may be used for both frequencies. The system offers several operating modes: in addition to continuous-wave (CW) operation, there are five pulsed modes with duty factors of 100%, 50%, 30%, 20%, 10% and 5%. Users can set parameters manually, choose from a comprehensive application list, or select stored pre-set treatment programmes.
All treatment parameters are indicated clearly on a 10.1″ TFT LCD full-colour touchscreen, and the modern high-tech design with a brushed aluminium surface is a further quality hallmark of the Sonostat
Key Features
Technical Specifications
| Intensity | 0–3 W/cm² (1 MHz) / 0–1.5 W/cm² (3.3 MHz) |
| Sound Frequency | 1 MHz ±10% or 3.3 MHz ±10% |
| Max. Power Output | 15 W |
| Display | 10.1″ TFT LCD touchscreen |
| Treatment Heads | 2.5 cm² or 5 cm² (same head for both frequencies) |
| Operating Modes | Continuous (CW) + 5 pulsed modes |
| Pulse Ratio | 100%, 50%, 30%, 20%, 10%, 5% |
| Timer | 1–30 min |
| Power Supply | 100–240 V, 50–60 Hz |
| Class of Protection | Class I (IEC 60601) |
| Degree of Protection (Applied Part) | BF (IEC 60601) |
| Class of Equipment | IIa (acc. to MDD) |
| Ingress Protection | IP X0 (IEC 60529) |
| 032-0-3000 | Sonostat® Ultrasound Unit |
| 032-0-3010 | Ultrasound probe with cable and plug, 2.5 cm² emitting surface (1 & 3.3 MHz) |
| 032-0-3020 | Ultrasound probe with cable and plug, 5 cm² emitting surface (1 & 3.3 MHz) |
| 45-39-128 EH725 | Ultrasonic contact gel, 250 ml |

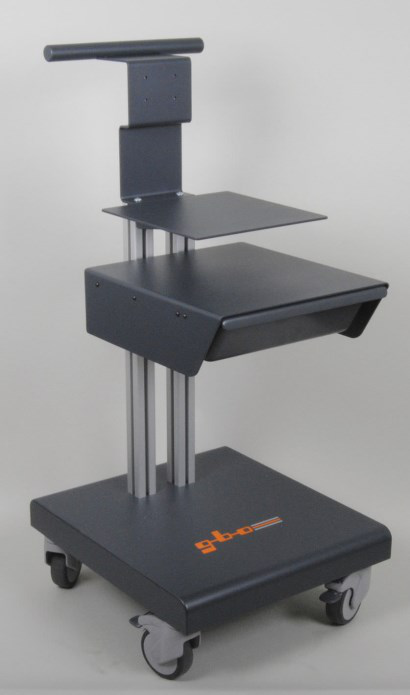

| 026-0-2000 | Unicar Basic Cart |
