Overview
Key Features
EMS unit with wide range of contraction, relaxation, ramp time and pulse rate. It has 3 options of pulse duration setting: 100, 200 and 300µs. Dial switches are clear and simple to use.

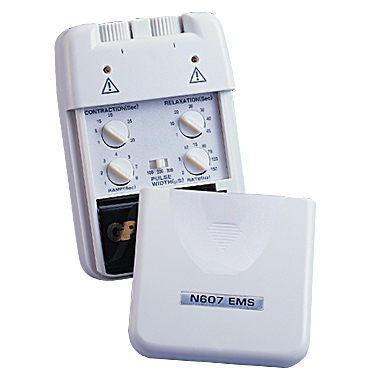

MODEL No: N-607 EMS
| MODEL No: | N-607 EMS |
|---|---|
| Channel: | Dual, isolated between channels |
| Pulse Amplitude: | 0-80mA peak to peak into 500 ohm load. |
| Pulse Rate: | Adjustable, 2 ~ 150 Hz |
| Pulse Width: | Selectable, 100, 200, 300 µs |
| Contraction Time: | Adjustable, 1 ~ 30 sec. |
| Relaxation Time: | Adjustable, 1 ~ 45 sec. |
| Ramp Time: | Adjustable, 1-8 sec. |
| Wave Form: | Asymmetrical Bi-Phasic Square Pulse |
| Voltage: | 0-45 V peak into 500 ohm load |
| Size: | 95(H)X 65(W) X 23.5(T) mm |
