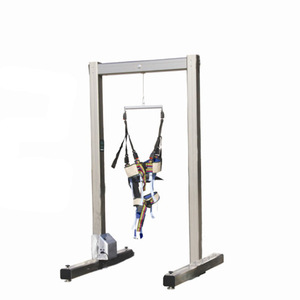

SUSPENSION AND UNWEIGHING SYSTEM

FUNCTIONAL REHABILATION

Description

FEATURES
The system is equipped with air compressor which adopts all structure and the air inflation cylinder operates smoothly. The system noise is small. Adopt Japan SMC air pressure regulator, the air pressure is accurate steady and air tight. Over pressure protective function.

Three kinds of operation modes;
Dynamic mode: Lifting range: 0- 60cm. the reducing weight is adjustable and driven force compensation is available. Thus, the patient can stand up easier when start training.
Static Mode: Lifting Range: 0- 60cm. The reducing weight is adjustable and driven force is constant. When training with running machine, the reducing weight of foot rising and falling is fixed.
Balance Mode: Lifting range: 0- 10. The reducing weight is adjustable and driven force is constant. If the patient slips and falls, the safe rope will lock the patient on the safe height. Single lifting rope makes patient available turn round freely. Correction type of lifting vest is available to correct the posture of hip, knee, and ankle and back fore rake, back hypsokinesis, back heeling during walk training. The vest is inflatable which makes patient feel comfortable the most. The height is adjustable which is suitable for adults and children. The patient can walk on foot the bevel edge structure provides patients and therapists with a safe therapeutic environment.

MODEL No: YK-7000

Additional information

MODEL No:

YK-7000

Voltage:

220v 50/60Hz

Width:

Inner: 90cm & Outside: 110cm

Max atmospheric Pressure:

0.8Mpa

Maximum Body Weight:

250Kg

Maximum Body Height:

240cm

Max Lifting load:

100Kg.
