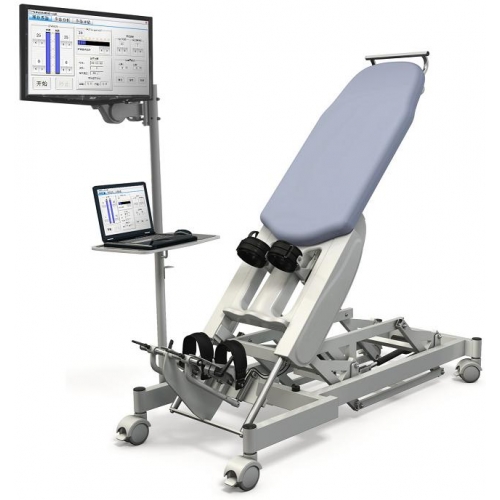

LOWER LIMBS TRAINING & FEEDBACK

FUNCTIONAL REHABILATION

Description

FEATURES:
Operation platform: dikaryon laptop
The table is fire resistance, antibiosis, temperature resistance, durable, high elasticity and comfortable
Table driven devices: 3 Denmark linak linear motors.
Bed adjustable length range: 52~86cm
Standing angle range: 0~80°
Hypsokinesis angle range: 0~10 •
Body supporting tie supports patient’s weight during training
Walking mode: simulate human physiological gait which including initial velocity, acceleration and deceleration
Driven devices: 2 panasonic servo motor walking angle: 0~25 °walking speed: 1~80 step/min
Training mode: active, passive and virtual training modes.
The universal and multi-function foot board is suitable for virus and vague adjusts ankle joint angle to correct patient’s gait. The foot board provides load to stimulate foot proprioception which is helpful for recovering the brain control function for the lower limbs.
Safety devices: two 300 kg, 400 mm/ s dampers, emergency stop switch.
Spasm detection: when spasm happens, the machine will stop and walk in reverse direction and slowly. And then the speed will be gained to normal level. This function protects patient the most.

SPECIFICATIONS
Gait analysis: 2d gait analysis curve shows leg myodynamia and feet proprioception status in real time. and the curve also show the related time which helps therapist to adjust the treatment program. Comparing and evaluation function: lower limbs stiff column diagram of before and after training which shows the treatment effect obviously. and that will improve patient’s treatment confidence. Voice prompt is available during whole training.
Music treatment: Music makes patient relax the most.

MODEL No: ROB 100



Additional information

MODEL No:

ROB 100

Power input:

AC220v, 50hz

Rated power:

500VA

Protective tube specification:

3.15A /250V

Linear motor full thrust:

≤ 6000N

Load:

≤150 Kg

Weight:

≤120 Kg

Leg Adjustable Length:

0~25cm

Spasm Sensitivity:

0~25nm
