Intelect Mobile 2 Combo

Intelect

Two-channel electrotherapy + 1/3 MHz ultrasound combo system by Chattanooga with optional vacuum module. Five combo waveforms, 7″ touchscreen, SPS protocols, Bluetooth and optional battery. CE Class IIa.

Two-channel electrotherapy, ultrasound and combo with optional vacuum

7″ colour touchscreen, Bluetooth, battery-ready mobility

Overview

Intelect Mobile 2 Combo

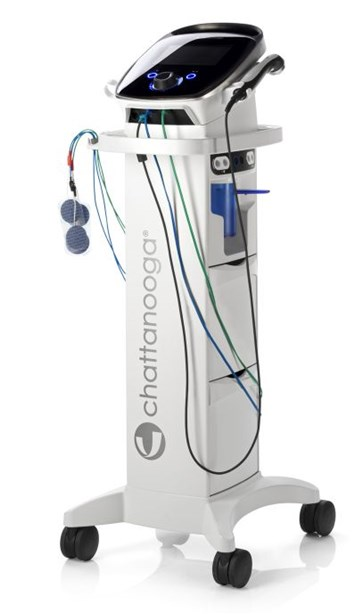

The Intelect Mobile 2 Combo is a two-channel electrotherapy, ultrasound and combination system, used with or without an optional cart that allows the inclusion of a vacuum module. Five combo-therapy waveforms are included — Interferential, VMS, High Volt, asymmetric biphasic TENS and symmetric biphasic TENS — alongside fully functional 1 and 3 MHz ultrasound frequencies and two channels of electrical stimulation output.

An intuitive user interface, quick-access buttons and preset protocols make the Mobile 2 simple and effective for therapy delivery, while an optional built-in battery makes it a truly mobile option. A full-colour 7″ high-resolution touchscreen, upgradeable software, Bluetooth import/export, treatment-data storage, a Suggested Protocol Setting (SPS) library and a high-resolution anatomical library round out the platform; it is IEC 60601-1-11 compliant for home use.

Why buy from Physiomed

Key Features

Built for clinical performance

✓
Two-channel electrotherapy + 1 and 3 MHz ultrasound, combo capable
✓
Five combo waveforms: Interferential, VMS, High Volt, asym & sym biphasic TENS
✓

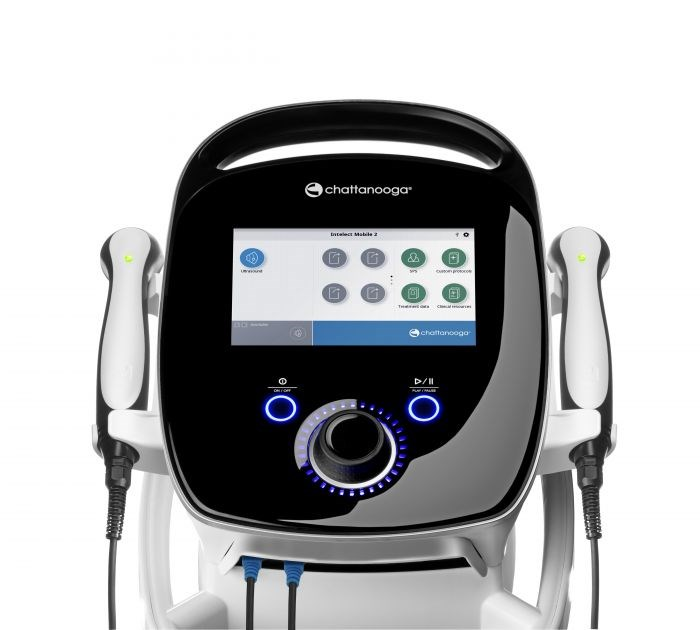

Full-colour 7″ high-resolution touchscreen; upgradeable software
✓
Bluetooth import/export and treatment-data storage
✓
Suggested Protocol Setting (SPS) and anatomical library
✓
Optional built-in battery; optional cart with vacuum module

Technical Specifications

Specifications

Main input 100–240 V AC, 1.0–0.42 A, 50/60 Hz
Electrical class Class II, continuous operation
Ultrasound frequency 1 MHz; 3 MHz
Ultrasound duty cycles 10%, 20%, 50%, continuous
Vacuum range 0 to 600 mbar (±5%), continuous or pulsed
Dimensions / weight 340 × 355 × 150 mm / 3.1 kg (no battery, excl. cart)
Classification (MDD) Class IIa device
Standard Accessories
  • 70010 / 70012 Stim channel 1/2 lead wire kit
  • 5 cm² ultrasound applicator (15-0142); carbon electrodes 6×8 cm (79967)
  • Ultrasound gel 250 ml; Dura-Stick Plus electrodes; USB drive (15-1140)
  • Power cord EU; printed quick start guide
Optional Accessories
  • 15-1136 Intelect Mobile 2 cart
  • 15-1210 Intelect Mobile 2 cart with vacuum
  • 15-0140/0141/0143 Ultrasound applicators (1 / 2 / 10 cm²)
  • 14-1086 Intelect Mobile 2 battery
Ordering Details
15-1205 Intelect Mobile 2 Combo Set

Clinical Protocols

Indications

Recommended starting parameters by indication. Final protocols should be set by the treating clinician.

TENS
Symptomatic relief of chronic pain and management of post-operative pain.
NMES
Muscle re-education, increasing local blood supply and relaxation of muscle spasms.
Range of motion
Maintaining and increasing range of motion.
