INTELLECT MOBILE COMBO

MOBILE COMBINATION

Category

Description

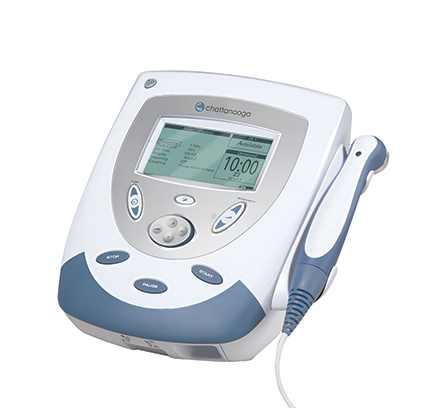

Chattanooga Intellect Mobile Combo is a dual frequency ultrasound device combined with 2 channel stimulation. The Chattanooga Intellect Mobile Combo is clinically proven to provide the best possible treatment outcomes by utilizing a high quality transducer to ensure maximum ultrasound delivery to the treatment area. The ultrasonic output is a clean, culminated beam with the lowest available Beam Non-uniformity Ratio. The ultrasound applicators are designed to provide ultrasound efficiency with no potential for parasitic radiation to the therapist. Each ultrasound head incorporates head warming and provides a contact control programme with visual and auditory feedback when coupling is present.
The two independent channels of stimulation offer a wide range of therapy currents including interferential and muscle stimulation, combined therapy with the ultrasound head is also possible. (Does not do laser).

Features
1 and 3 MHz ultrasound frequencies,• Pulsed & continuous ultrasound therapy operation (10%, 20%, 50% & 100%),• Variable duty cycle outputs of 16 Hz, 48 Hz, or 100 Hz for ultrasound, • Multiple waveforms on board, • Clinical Indications on board,• 15 user-defined memory positions,• Lightweight design,• Backlit LCD display for better visibility in low light settings ,• BNR <6:1 ,• Improved navigation button, • Ergonomically designed sound heads available in a variety of sizes ,• All sound heads are interchangeable ,• Head warming feature ,• Head contact control with visual and auditory feedback on all sound heads Therapy Possibilities ,• Dual Frequency Ultrasound – 1MHz and 3MHz ,• 2 Pole Interferential ,• 4 Pole Interferential ,• Galvanic ,• High Voltage Pulsed Current ,• Micro current
• Russian ,• Träbert ,• Monophasic Triangular, • Monophasic Rectangular,• Diadynamic,• VMS,• TENS

Standard Accessories
• 5 cm² Ultrasound Applicator
• Ultrasound Gel
• Nylatex Wrap
• 6 x 8cm carbon electrodes (4x)
• 6 x 8cm sponges (4x)
• User Manual on CD

MODEL No.  CHA 2778





Additional information

MODEL No.

CHA 2778

Main Power

120-240 VAC, 50-60 Hz

Electrical Safety Class

Class 1, Electrotherapy,Type BF,Ultrasound,Type B

Safety Tests

IEC 60601-1, IEC 60601-1-2, IEC 60601-2-5, IEC 60601-2-10

Weight

2.5 kg

Dimensions

33 x 29 x 25.7 cm
