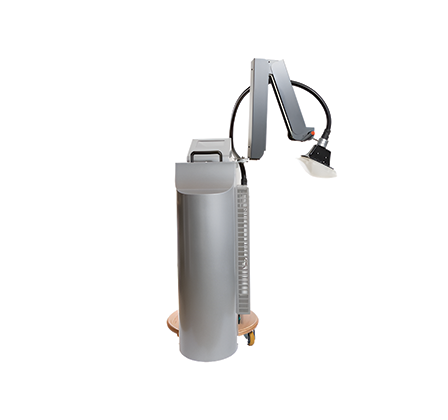

HYPERTHERMIA

hypertermia

Description

Hypertermia we mean the possibility of focusing in a well-defined area on the inside of the body, at a variable depth (from 1 cm up to 8 cm). Sufficient energy to bring the affected part (volume- target) to a high temperature (40°-45°) very specific and controlled without adjacent parts undergo disturbances apprezzabili. The great feature that makes this a unique new thermotherapy is the excellent reproducibility of the thermal parameters, through the use of sophisticated control systems and implementation of energy systems and target radians. This new method of induction heating is found to be far more suitable for the cure of certain diseases and resolve situations that appeared ostiche and the pattern unhelpful and chronic (contractures, tendonitis, mucolari injuries, arthritis, etc..) All this there does understand how hyperthermia is far more effective than all other therapies that are based on the heat as a means to cure the patient (radar, marconi, etc.).

Functional Features:
Touch Screen Panel, Smart mode with 3 parameters to set target depth, temperature and power.

RF Generator/Booster
Emission Frequency: 433.92 M HZ
Maximum Power Output: 100 Watt
Power Settle: 0- 100% step 5 %
Disadvantage protection: total (infinity ROS)
Direct Power Measurement: constant in real time.
Reflected Power Measurement: constant in real time.
Security controls: Absorbed current sense, operating temperature.

MODEL No: IP 1



Additional information

MODEL No:

IP 1

Used Technology:

Telton Microstrip

Rated Frequency:

433.92MHZ

Maximum Working Power:

200W

Transfer Efficiency:

90% Min. ( RF to useful heat.)

Maximum theraptic Penetration:

80 mm

Maximum foot Print:

186 x 196 mm

Actual field ( 50 % S.A.L) :

80 x 120 mm
