TECAR THERAPY - VOGUE, PURE & EASY

TECAR THERAPY

Category

Description

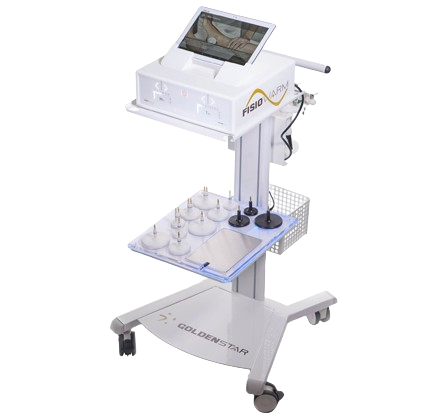

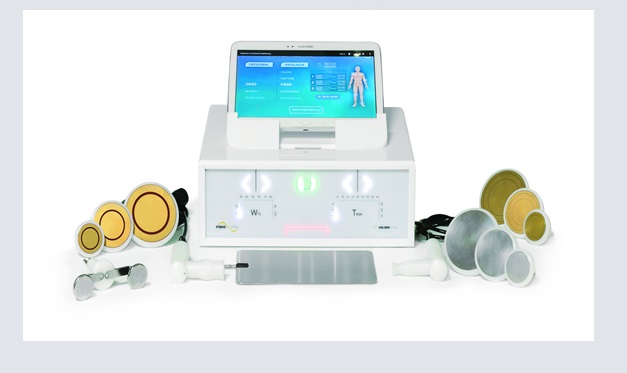

The new Fisiowarm® devices are capable of supplying energy by utilizing a different form of interaction between electrical fields, inspired by the physical model of the condenser but without using high voltage. There are multiple, customizable transfer modes characterized primarily by the fact that the heat is generated directly within the tissues, thus succeeding in treating disorders that were previously inaccessible. The tissues are perfused with energy deep down, without any form of energy being projected directly through the surface of the skin.The Fisiowarm® range stands out from its predecessors, primarily because of its hi-tech approach that takes the needs of both the therapist and the patient into consideration. Fisiowarm® includes a tablet with an Android app, which is easy and practical to use. Its numerous functions meet the most diverse requirements, making the most of all the advantages that a hi-tech tool such as this is able to offer: Wi-Fi and Bluetooth, new releases, new apps, and an interactive design. In standard tecar therapy devices very high power is used during treatments with capacitive electrodes, such as 800-1000 Volt, in order the current can overpass the electrode dielectric barrier (insulating film).The new Fisiowarm® devices can supply energy by using a different interaction among electric fields, by taking into consideration the condenser’s model but avoiding the use of high voltage (less than 200 Volt).

FEATURES:
Forty-six preset protocols divided into themed areas (bones, joints, muscles, vascular, post-op, and neurological). Library of customization protocols in which particular treatments comprising up to three phases can be created and stored , 3d Anatomy App , Tutor And Tutorial, Fixed Automatic Applications. Multi-frequency, Heat-Free, Low Voltage, High Efficacy, Technical assistance via Wi-Fi connection, Software updates, Newsletter, Remote management (Bluetooth), Neutro Dynamic, Fixed Automatic Bipolar, Pulsed Heat-free conditions

THERAUPTIC INDICATIONS:
Neuropathies, Joint Diseases, Joint Rehabilitation, Sprains, Muscle Disorders
Following Rehabilitative Surgery: , Sports-Related Syndromes, Acute And Chronic Pains, Carring,Tendinopathies

MODEL No: VOGUE/ 400 POWER

                       PURE/ 300 POWER

                       EASY/200 POWER


Additional information

MODEL No.

VOGUE /400 POWER
PURE /300 POWER
EASY /200 POWER

INTERFACE:

VOGUE-App for Android Tablet (10.1inch tablet included) Backlit resistive front panel
PURE-App for Android Tablet (10.1inch tablet included)Backlit resistive front panel
EASY-App for Android Tablet (8inch tablet included)Backlit resistive front panel

OPERATING FREQUENCY:

VOGUE-0,5/0,6/0,7/0,75/0,8/0,9/1 MHz – Automatic scanning frequency
PURE-0,5 / 0,75 / 1 MHz
EASY-0,5 MHz

OUTPUT:

VOGUE-Continuous-Continuous 50%, Pulsated 1-1, Pulsated 1-2, Pulsated 2-1
PUERE-Continuous-Continuous 50%, Pulsated 1-1
EASY-Pulsed 1-1 (only via App)

OPERATING MODE:

VOGUE-Unipolar, Bipolar, Neutro Dinamico®,Automatic Fixed apps.
PURE-Unipolar,Bipolar,Neutro Dinamico® Automatic Fixed apps
EASY-Bipolar, Neutro Dinamico® Automatic fixed apps

ACCESSORIES PROVIDED:

VOGUE-Unipolar: Capacitive Kit + Resistive Kit, Bipolar: Capacitive Kit + Resistive electrode (with fixed heads)1 Trolley,1 Heated accessories stand.
PURE-Unipolar: Capacitive Kit + Resistive Kit, Bipolar: Capacitive Kit + Resistive electrode (with fixed heads),1 Heated accessories stand
EASY-Bipolar: Capacitive Kit + Resistive electrode (with fixed heads) 1 Accessories stand.

TRANSFER:

VOGUE-Capacitive , Resistive
PURE-Capacitive , Resistive
EASY-Capacitive , Resistive

PRE-SET PROTOCOL:

VOGUE – 46
PURE – 22
EASY – NO

COMPATIBLE ACCESSORIES:

VOGUE – ALL
PURE – ALL
EASY – TUTI
