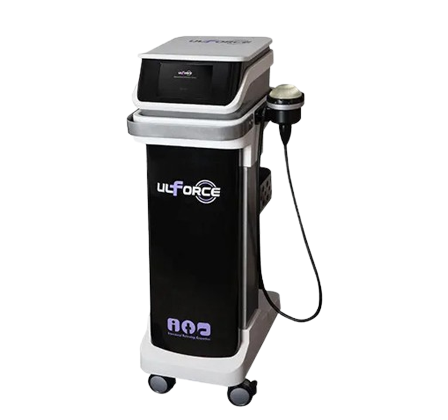

Ulforce Focused

Ulforce Focused

Overview

Ulforce uses an artificially generated “Shock Wave”.

The system also controls the amount of energy so that it does not harm the human body, By accurately delivering energy to the musculoskeletal system with lesions,

It promotes calcification and revascularization around the tendon or

joints through physical changes in cell membranes.

In addition, it is a state-of-the-art advanced treatment that helps regenerate normal tissues and restrains the transmission of pain at the treatment site,

and restores (heals) several lesions of the internal tissues of the body that have not easily improved.

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Technical Specifications

Description

Ulforce uses an artificially generated “Shock Wave”.

The system also controls the amount of energy so that it does not harm the human body, By accurately delivering energy to the musculoskeletal system with lesions,

It promotes calcification and revascularization around the tendon or

joints through physical changes in cell membranes.

In addition, it is a state-of-the-art advanced treatment that helps regenerate normal tissues and restrains the transmission of pain at the treatment site,

and restores (heals) several lesions of the internal tissues of the body that have not easily improved.

Additional information

Classification of devices

Class 1 BF type

Voltage / Hz

220V / 60Hz

Power consumption

200VA

Size

450 X 511 X 1003mm

Weight

33Kg

Shockwave Source

Piezo-electric

Sound propagation

Single focus formation

Power

25 grade

Frequency Mode

1~5 (step:1)

Times

1~5000

Penetration depth

10, 20, 30 mm

Max. Focus size

63mm

Max. Energy denisity

1.01 mJ/mm2

Max. Pressure

7.93 Mpa

Max Pulse energy

10.91mJ
