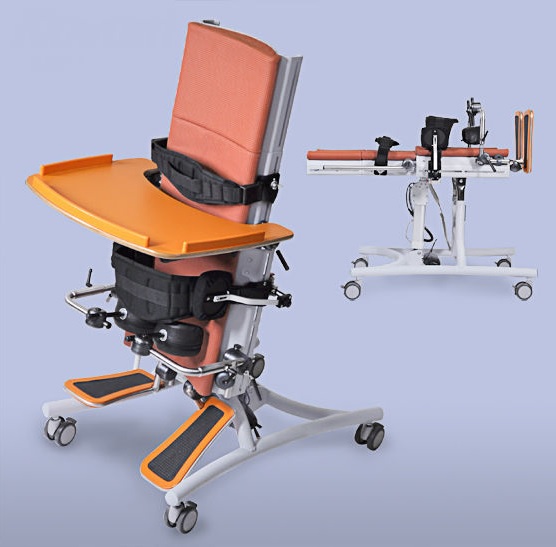

PRONE, SUPINE & UPRIGHT STANDER - NOVUM 3

TILT TABLE

Description

The application of a new concept for lying on the back or front has an anatomically shaped board. The advantage of all standing systems: the patient is supported the whole length and not only at various points of the body. The electric tilt adjustment eases the manual handling. No other product offers the same possibilities for treatment, permitting or the reception of complicated foot malpositions. And thus offers the best prerequisite for guided standing up.All tilting tables and standing frames are made up out of a frame, 4 swivel wheels, 2 foot plates (pair), 2 standard support cushions and 2 safety belts.The upholstered anatomically shaped lying surface is extendable through extension cushions.The therapy table is functional in any position and additionally supports optimal head control training. The lowest walk in height is adjustable to 3 cm, almost at floor level.

Indications

Indicated by the following foot malpositions:

  • Weak or contracted foot postures
  • Pes Equinus and heel calcars
  • Talipes varus
  • Other complicated foot malpositions

Scope of delivery

  • 2 support pads
  • 3-D adjustable footplates
  • 3 safety belts
  • 4 swivel wheels

Optional Accessories

  • Therapy table ( Prone & Supine Position)
  • Extension Cushion ( Wide & Narrow)
  • Thorax – Pelvic
  • SupportHeel Support
  • Knee Support
  • Electric motor *Rechargeable)

Model No. NOVUM 3-ELECTRIC

Additional information

MODEL No.

NOVUM-3

Armpit height

115.0 – 153.0cm.

Overall height basic model* cm max. 201.0

Chassis overall width.

70.0cm.

Chassis overall legth.

112.0cm.

Overall height basic model*

Max. 201.0cm

Standard support cushion – large (width x height) cm 45.0 x 89.0

Overall height horizotal

76.0cm

Access height

cm from 3.0

Standard support cushion.

Small (width x height) cm 36.0 x 30.0

Tilt degrees

-5° bis 90°

Product weight

45.0kg

Maximum capacity

100.0kg
