IDEAL PLUS WIDE NEUROLOGY PLINTHT

Extra-wide (100 cm) 2-section electric neurology plinth from the Ideal Plus range – highly stable and rigid, low 46 cm operation height for hoist clearance, 225 kg capacity, dual gas-strut head section. CE certified.

Overview

Why buy from Physiomed

Key Features

Built for clinical performance

No data was found

Description

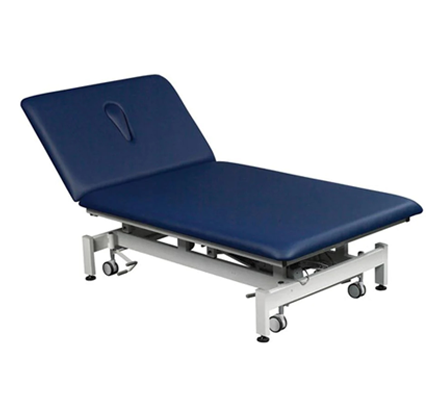

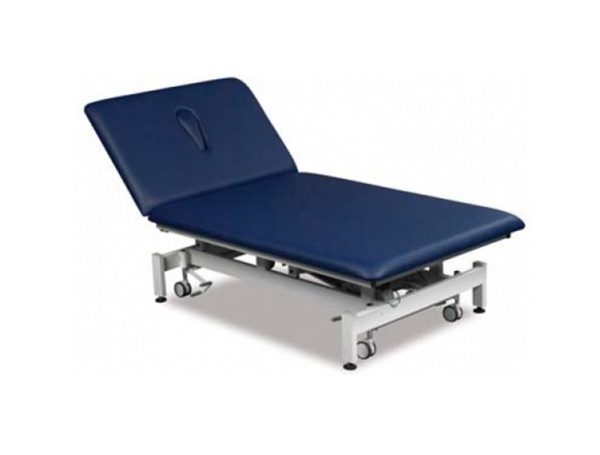

Ideal Plus 2 Section Wide Neurology Plinth

The classic Ideal Plus wide neurology couch is probably the most stable and rigid couch currently available. Featuring a large upholstered top and an exceptional low operation height of 46 cm (18 inch), it still allows clearance for mobile hoist procedures.

Standard Features

  • Positive/negative head section
  • Retractable wheels as standard
  • Breathing hole and plug as standard
  • Electric Hi-Lo operation by hand / foot control
  • Twin-lift design with sleek frame and rounded edges for safety
  • Minimum height 46 cm to maximum height 91 cm
  • Adjustable head section by dual gas struts from -20° to +80°
  • Head section with face hole and plug; adjustable feet for uneven surfaces
  • 7.5 cm castors for safety and mobility; padding thickness 5 cm

Specifications

Total Length 205 cm
Width 100 cm
Head Section Length 69 cm
Leg Section Length 136 cm
Height Adjustable 46 cm to 91 cm
Loading Weight 225 kg
Upholstery PVC vinyl with fire resistant
Certification CE

Available Colours

Black, Grey, Beige, Vivid Blue, Spruce Blue, Navy Blue.

Ordering Details

TAB 200W / ELEC 2 Section Wide Neurology Plinth

Additional information

Minimum height

460mm / 18.1

Maximum height

910mm / 35.8

Cushion width

1000mm / 39.4”

Head section length

650mm / 25.60”

Leg section length

1410mm / 55.5”

Total length

2080mm / 81.8”

Head tilt angle

+87” to – 20

Lift mechanism

Electric

Breathing hole

1

Retractable wheels

4

User Weight

225kg / 496lb

Net weight

104kg

Gross weight

123kg
