TWO SECTION HYDRAULIC COUCH

Ideal Plus 2-section hydraulic treatment couch with twin-lift stability, dual gas-strut head section (-20 to +80 degrees), hydraulic Hi-Lo (46-91 cm), 225 kg capacity and fire-resistant PVC upholstery. CE certified.

Overview

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Description

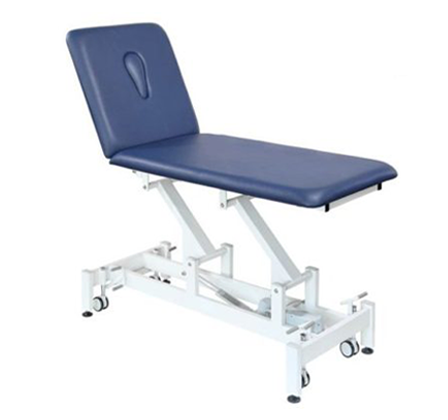

Ideal Plus Two Section Hydraulic Couch

Designed and constructed using modern engineering techniques and manufactured from the finest material to the highest standard. Ideal Plus variable couches feature a double gas-strut configuration at the head section, twin-lift stability, open base design, self-levelling feet and a choice of 5 vibrant colours. Supplied with breathing hole and paper towel holder as standard, the range combines quality and durability with unrestricted access for a range of patient treatment. This variant uses hydraulic height operation.

Standard Features

  • Positive/negative head section
  • Retractable wheels and paper roll holder as standard
  • Breathing hole and plug as standard
  • Hydraulic Hi-Lo operation by hand / foot control
  • Twin-lift design with sleek frame and rounded edges for safety
  • Minimum height 46 cm to maximum height 91 cm
  • Adjustable head section by dual gas struts from -20° to +80°
  • Head section with face hole and plug; adjustable feet for uneven surfaces
  • 7.5 cm castors; retractable dual-locking castors on all 4 corners; padding thickness 5 cm

Specifications

Total Length 195 cm
Width 71 cm
Head Section Length 68 cm
Leg Section Length 124 cm
Height Adjustable 46 cm to 91 cm
Loading Weight 225 kg
Upholstery PVC vinyl with fire resistant
Certification CE

Available Colours

Black, Grey, Beige, Vivid Blue, Spruce Blue, Navy Blue.

Optional Accessories

Padded / painted side rail & IV pole holder.

Ordering Details

TAB 200 / HYDR 2 Section Hydraulic Couch

Additional information

MODEL No.

TAB 200 HYD

Adjustable height

460mm / 18.1” to 910mm / 35.8”

Cushion width :

700mm / 27.6”

Head section length :

685mm /27”

Mid Section Length :

565mm / 22.3”

Leg Section Length :

680mm / 26.8”

Total Length :

1955mm / 77”

Head tilt angles :

+87” to -35”

Leg Tilt Angles :

+20˚ to -29˚

Lift mechanism :

Electric / Hydraulic

Breathing hole :

1

Retractable wheels Standard

x 4

Weight rating :

225kg / 496lba

Upholstery colours

Blue, Orange, Red
