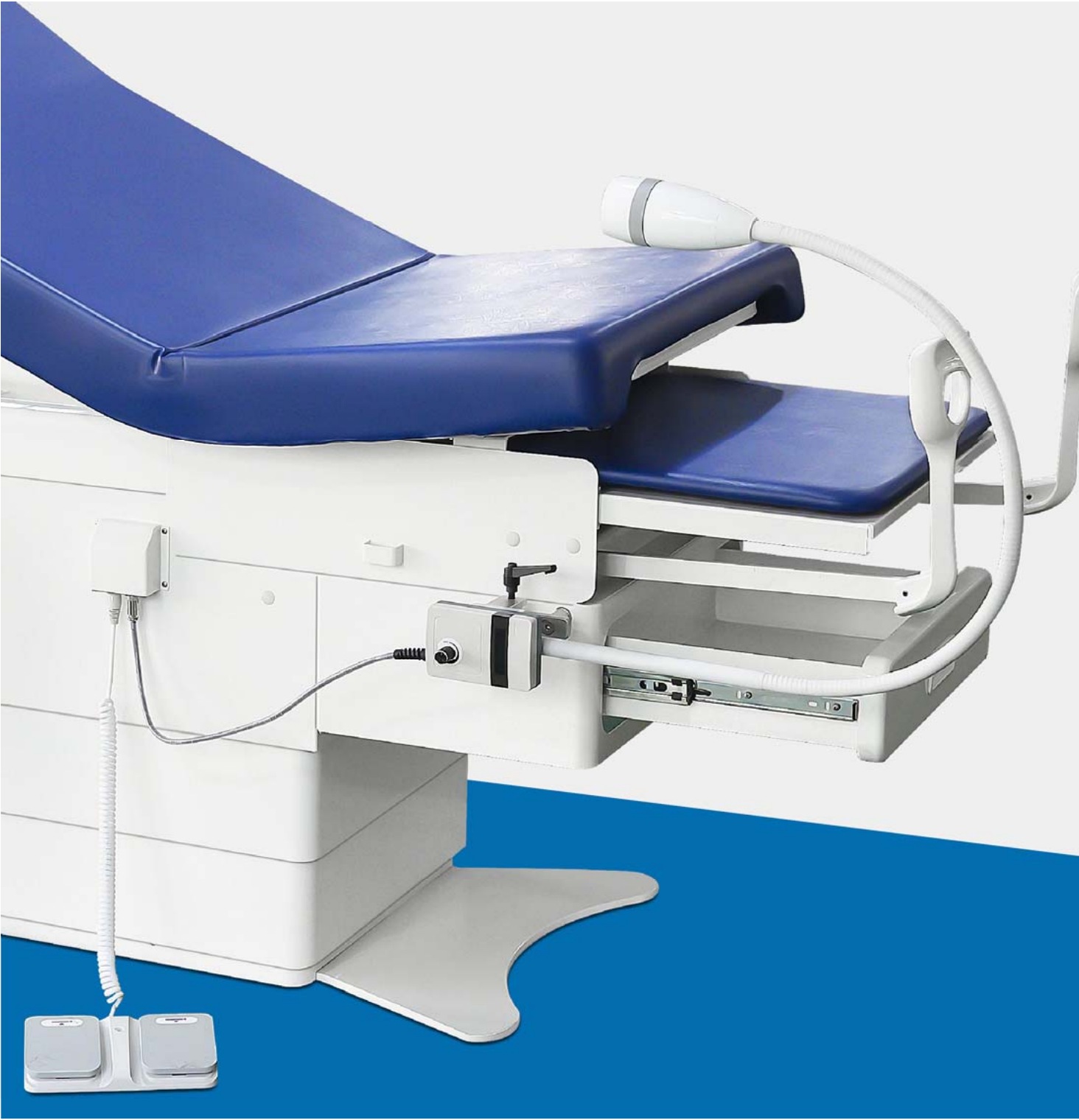

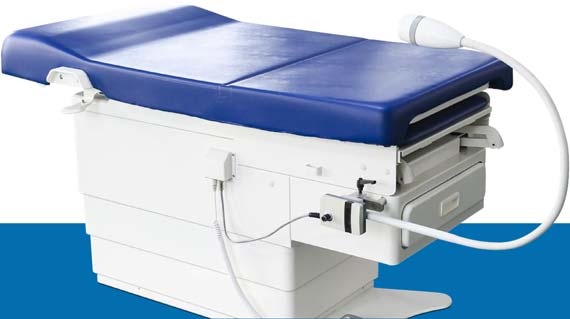

Electric hi-low gynecology couch with a spring-assisted back section and powerful electric seat-height adjustment (460–860 mm). Pneumatic back section (0–75°), manual seat section (0–7°), detachable foot board, 4 L stainless-steel treatment pan, washable PU-foam mattress, a hidden drawer on telescopic railing and an adjustable LED examination light.
Overview

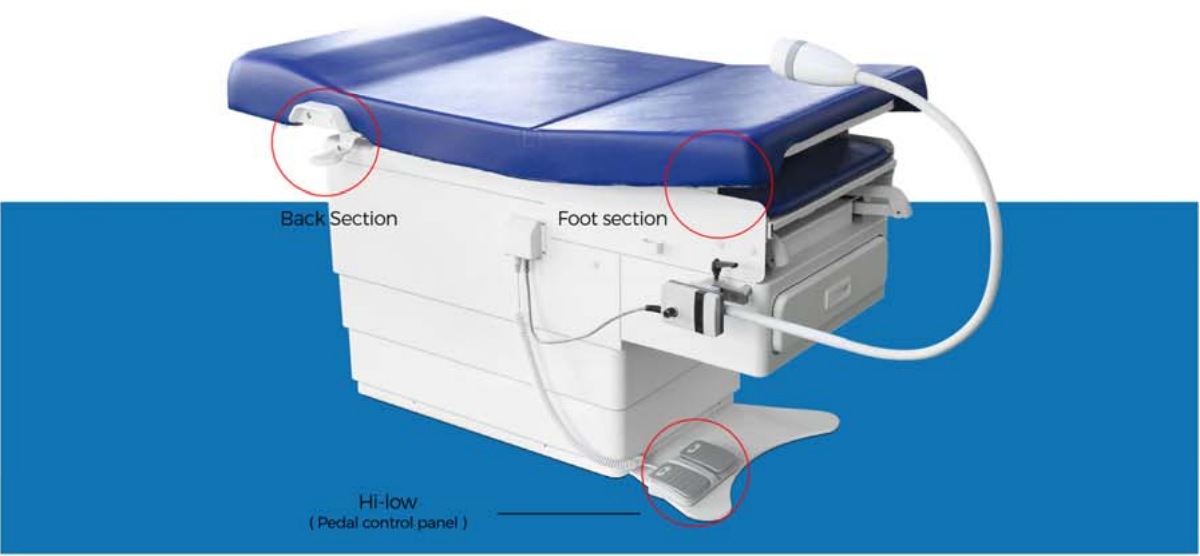

The GYN-190D has a spring-assisted back section with an easy-access backrest mechanism and a powerful electric control system for seat-height adjustment. Built-in pillows and a hideaway assistant board provide comfortable, easy operation for both doctors and patients.
Seat height adjusts by foot control (460–860 mm), the back section adjusts 0–75° by pneumatic control, and the seat section adjusts 0–7° by manual operation. It includes a detachable foot board, a 4 L stainless-steel treatment pan, a retractable and foldable leg support, a washable polyurethane-foam mattress, a high-accuracy noiseless motor, a hidden drawer on telescopic railing for extra storage, and an adjustable LED examination light.
Key Features
Technical Specifications
| Overall length | 1800 mm (incl. assistant board) |
| Overall width | 720 mm |
| Seat height range | 460–860 mm |
| Seat section adjust | 0–7° ±1° |
| Back section adjust | 0–75° ±5° |
| Drawer size | W420 × D300 × H100 mm |
| Assistant board | L410 × W300 mm |
| Mattress | Polyurethane foam |
| Leg-support pedal (horizontal) | 0–115° ±5 |
| Foot pedal (horizontal) | 0–45° ±5 |
| Examination light | LED, brightness & depth adjustable, detachable |
| GYN-190D | Electric Hi-Low Gynecology Couch |
