ORION 2 SECTION EXAMINATION COUCH

Orion 2 Section Couch

Overview

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Description

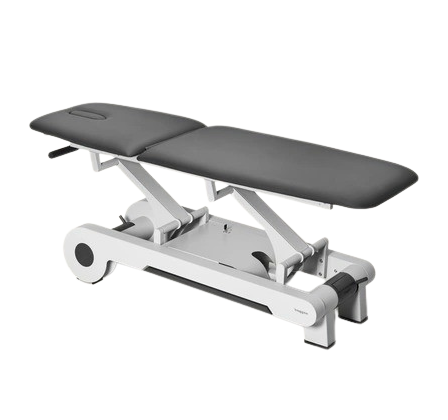

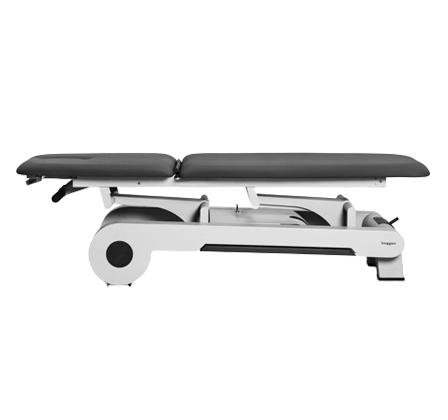

Electric 2-section therapy table for treatments on patients lying down in supine or prone positions or semi-sitting position. The backrest is adjustable from 0º to 65º. The table is equipped with 1 motor that, controls the table height through the perimeter foot switch placed at the base of the table. The high-end upholstery made of vinyl coated fabric that offers maximum quality, resistance and durability in healthcare environments.

Peripheral switch:
Ergonomic and silent height-controlling device all around the table. The mechanism in each side consist of two bars fully integrated in the base. In the front and rear part of the table, the height motion is operated by means of two foot switches for both up and down movements respectively.

Mobility:
Rubber wheels turning at 360°. They confer a free mobility. For this reason, the table includes a lever placed on one end of the base that allows the wheels to be hidden at convenient.

Comfort:
Ergonomic foldable hand support to be held by the customer when lying in prone position. It can also be helpful by the professional for pulling the table when moving it.

Technical Features:

  • Length: 200 cm
  • Width: 68 cm
  • Height: 56 -92 cm
  • Weight: 107 kg
  • Max. Load capacity: 250 kg
  • Number of motors: 1
  • Upholstery: 5 cm
  • Density: 40 kg/m³

Functions:

  • Adjustable backrest (+ 65°)
  • Rubber wheels turning at 360°

Includes the following accessories:

  • Breather hole
  • 4 large, retractable wheels
  • Peripheral switch
  • Security lock



MODEL No. ORN 201
