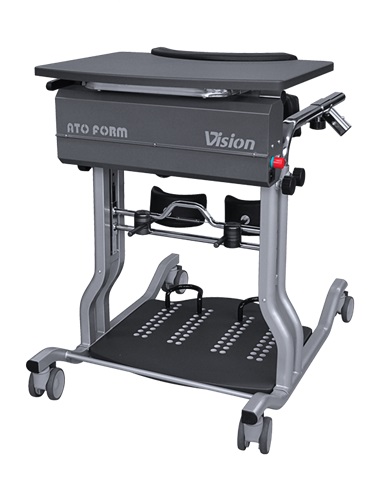

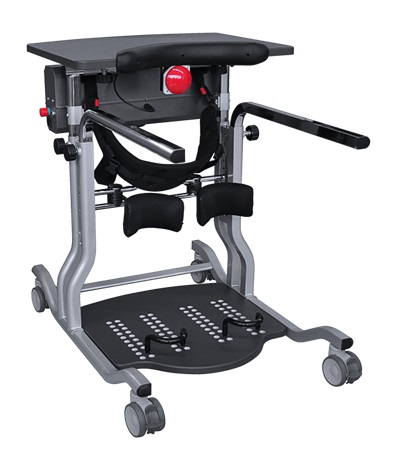

STANDING FRAME - VISION JUNIOR

POWER STANDING FRAME

Description

The standing frame Vision®  enables you having an active part in your surroundings, taking actively part in prophylactic acts and the therapy of pathological patterns, also to ensure the present quality of life.Vision® offers an entry at almost floor level and makes rising from a wheelchair easier. The user can stand up without any effort of his own.Vision® is fitted, as standard, with 4 safety wheels, for comfortable change of location.

Indication:

  • Cerebral paresis
  • Paraplegia
  • Quadriplegia
  • Multiple sclerosis
  • And others

Standard Accessories:

  • Wireless remote control
  • Easy to use height adjustment of the therapy table by means of gas springs
  • Depth and tilt adjustable therapy table

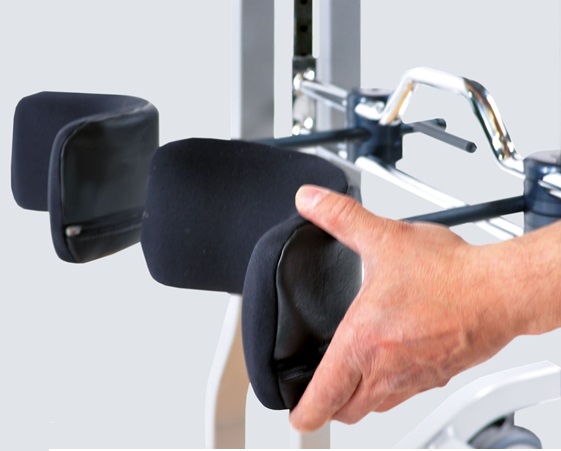

  • Adjustable depth, height, breadth and angular position of knee supports
  • Width and depth adjustable heel supports
  • 4 safety wheels

Optional Accessories

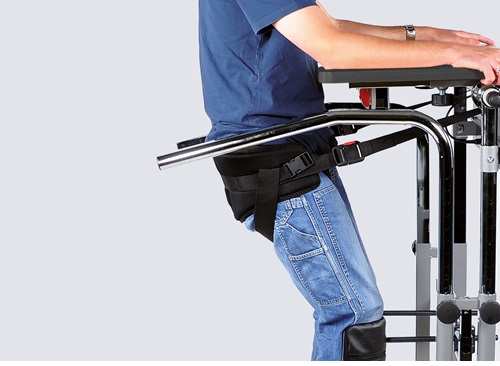

  • Pressure relieving stand up belt
  • Pressure relieving stand up belt with inside cover
  • Abdominal belt
  • Back support with side support and headrest
  • Foot flexations velcro
  • Posterior support unit
  • Forefoot flexations
  • Cushion for abdomen cut-out soft

Additional information

MODEL No.

VSJ-1000 JUNIOR
VS-1000 ADULT

Footplate ↔ Table

87.0 – 100.0 93.0 – 120.0 cm

Footplate ↔ Knee support

30.0 – 50.0 38.0 – 56.0cm

Height of handrails (from footplate)

69.0 – 90.0 80.0 – 104.0cm

Floor ↔ upper edge footplate

8.0 8.0cm

Overall length

99.0 110.0cm

Outer frame width

68.0 78.8cm

Inner frame width

51.5 61.5cm

Therapy table (breadth x depth)

65.0 x 60.0 75.0 x 60.0cm

Depth adjustment table

16.0 16.0cm

Tilt adjustment table Degrees

+/- 15° +/- 15°

Product weight

58.0 62.0kg

Maximum capacity

150.0 150.0kg

Power supply

230V
