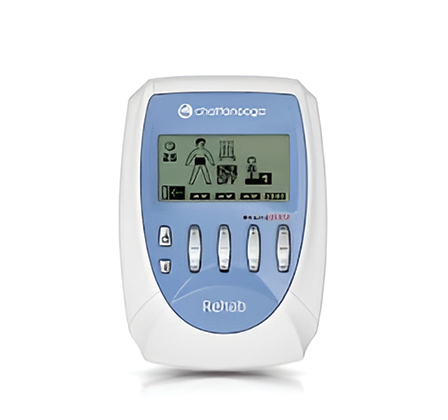

REHAB-ELECTRO-STIMULATOR/ HAND HELD/TENS

REHAB- ELECTRO STIMULATOR-

Category

Description

REHAB is a 4 channels stimulator developed for PTs and Rehab Clinics requesting a standard way of use of electro stimulation. It meets all of the requirements a professional demand: pain management, treatment of vascular diseases, and muscle stimulation with basic programs. Choose one program for channel 1 and 2, and then select another program from the 2+2 program list for channel 3 and 4. This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.

FEATURES
Programs
Four standard program categories: Rehabilitation I, Pain Relief I, Vascular and Conditioning I. Standard program configuration.
Muscle Intelligence™ Technology
• Mi-Ready (integrated Mi Technology on all 4channels, but Mi-Cable not included). • 4 functions: Mi- Scan, Mi-Tens, Mi-Range, Mi-Action
2+2
Choose one program for channel 1 and 2, and then select another program from the 2+2 program list for channel 3 and 4. This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.
Skip
Manage the session time and move directly to the next phase (recovery) when needed.
Motor Point Pen
This very useful tool in combination with the dedicated program helps to ensure the optimal
electrode placement.
Programmability
Creates and personalizes programs in order to customize the patient specific parameters.
Detailed Practical Guide
Guidelines and treatment recommendations as well as technical parameters for all programs included in the stimulator are provided. The fold out cover includes illustrations of the suggested electrode placements.
Autonomy and Speed Recharge
Daily use autonomy with the charger included in the kit, a full cycle of recharging will take a maximum of 2.5 hours

STANDARD ACCESSORIES
Fast Charger, Battery Pack, Set of 4 pin cables, Snap adapter kit, Protecting cover, Bottle of gel, Motor point pen, Transportation Pouch, Belt clip, Battery Pack high energy Belt clip.

MODEL No. 2533115

Additional information

MODEL No.

2533115

Channels:

4

Constant Current:

Up to a resistance of Max 1300 ohm/channel

Maximum Pulse intensity:

120mA

Pulse width:

30 to 400 us

Pulse Frequency:

1 to 150 Hz

MDD:

Class 11a

IP class:

IP22
Type BF

Applied Part:

Comply with safety tests: IEC 6060-1,
IEC 60601-1-2, IEC 60602-2-10

Battery 941213:

Nickel metal hydride (NiMH) 4.8V
2000 mA/h.

Dimensions:

138 x 95 x 33mm

Weight:

300g Battery included
