Electric split-leg tilt table with height adjustment from 49 to 94 cm, so wheelchair transfers start low and treatment continues at working height. Two motors drive height (8000 N) and tilt up to +88° (6000 N). It has a gas-spring backrest up to +80°, independent twin footboards, a set of 5 fixation belts, and a built-in goniometer. Maximum load 120 kg.
Overview

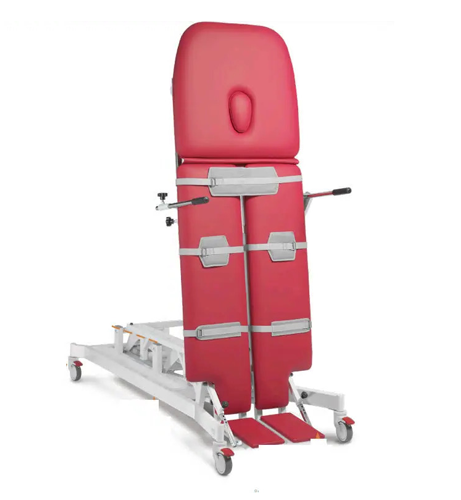

The Raffaello Tilt Table (Model 250174) combines verticalisation with independent lower-limb positioning. It lowers to 49 cm for easy transfer from a wheelchair, then rises electrically to 94 cm so the therapist can work at a comfortable height. The design of the support frame allows smooth lifting and transfer of the patient.
Two electric motors do the work: 8000 N for height and 6000 N for tilt up to +88°. The split-leg design uses independently adjustable, folding twin footboards, each tilting ±15°, so each leg can be positioned separately. A gas-spring backrest adjusts up to +80°. A goniometer shows the tilt angle, and a set of 5 fixation belts holds the patient securely. Two fixed and two swivelling castors with brakes keep the table stable. Padding and covering are fire-retardant, class 1IM.
Key Features
Technical Specifications
| Dimensions (L × W × H) | 200 × 70 × 49–94 cm |
| Height adjustment | Electric, 49–94 cm |
| Tilt | Up to +88° |
| Motors | 2 electric: 8000 N (height), 6000 N (tilt) |
| Backrest | Gas-spring assisted, up to +80° |
| Footboards | Twin, independently adjustable and folding, ±15° |
| Angle indicator | Goniometer |
| Fixation belts | Set of 5 |
| Castors | 2 fixed + 2 swivelling, with brakes |
| Upholstery | Fire-retardant, class 1IM |
| Max. load | 120 kg |
| ART250171 | Raffaello Split-Leg |
