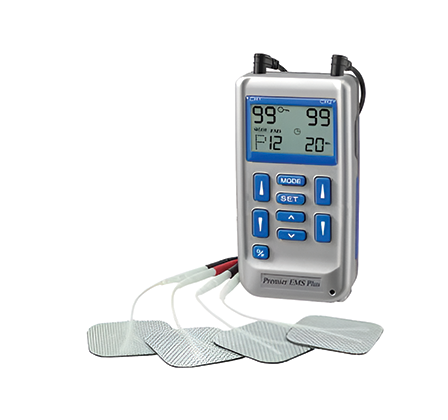

PREMIER EMS PLUS

EMS PLUS

Overview

The Premier EMS is a fully digital battery operated pulse generator that sends electrical impulses to the nerves and underlying muscle groups. This unit is EMS which can be used for muscle stimulation. The device is provided with two controllable output channels, each independent of the other. A pair of electrodes can be connected to each output channel. The intensity level and settings are controlled by press buttons.

Features
Dual channel (4-lead) Digital EMS Neuro-Muscular Stimulator
Fully digital with micro-processor circuitry and controls
3 EMS Adjustable Modes (Constant, Synchronous, Alternating)
12 Preset EMS Programs for quick set-up and ease of use
Large, easy-to-read LCD display
Parameter Lock button to prevent accidental changes of settings
Treatment Pause button to pause and resume treatment
Treatment Timer 5-60 minutes, or Continuous operation
Treatment Countdown display with Automatic Shut-Off
Compliance Monitor records up to 999 hours of usage.

MODEL No. EM-6200A

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Technical Specifications

Description

The Premier EMS is a fully digital battery operated pulse generator that sends electrical impulses to the nerves and underlying muscle groups. This unit is EMS which can be used for muscle stimulation. The device is provided with two controllable output channels, each independent of the other. A pair of electrodes can be connected to each output channel. The intensity level and settings are controlled by press buttons.

Features
Dual channel (4-lead) Digital EMS Neuro-Muscular Stimulator
Fully digital with micro-processor circuitry and controls
3 EMS Adjustable Modes (Constant, Synchronous, Alternating)
12 Preset EMS Programs for quick set-up and ease of use
Large, easy-to-read LCD display
Parameter Lock button to prevent accidental changes of settings
Treatment Pause button to pause and resume treatment
Treatment Timer 5-60 minutes, or Continuous operation
Treatment Countdown display with Automatic Shut-Off
Compliance Monitor records up to 999 hours of usage.

MODEL No. EM-6200A

Additional information

MODEL No.

EM-6200A

Channels:

Dual, isolated between channels

(

Wave Form:

Asymmetrical Biphasic Square Pulse

Amplitude:

0-100 mA (peak to peak into 500 ohm load each channel)

Output Voltage:

0 to 50V (500 ohm load)

Pulse Rate :

Adjustable, from 2 to 150 Hz, 1 Hz/step

Pulse Width :

Adjustable, from 50 to 300 microseconds,10 μs/step

Voltage :

0 to 55V (Load: 500 ohm)

Size :

11.8cm(L) x 6 cm(W) x 3.1cm(H)

Weight

157 grams with battery.
