POSITION STAND WITH THERAPY TABLE- NOVUM 1

Therapy Chair with Stand

Overview

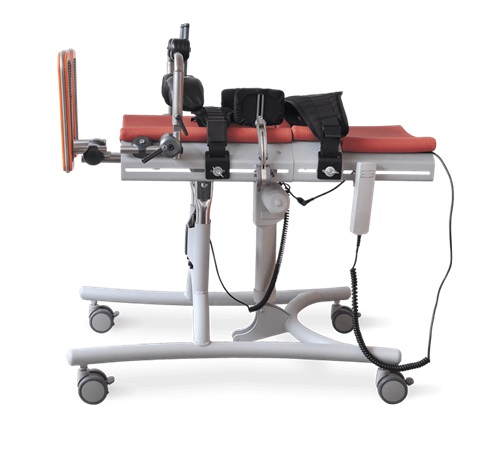

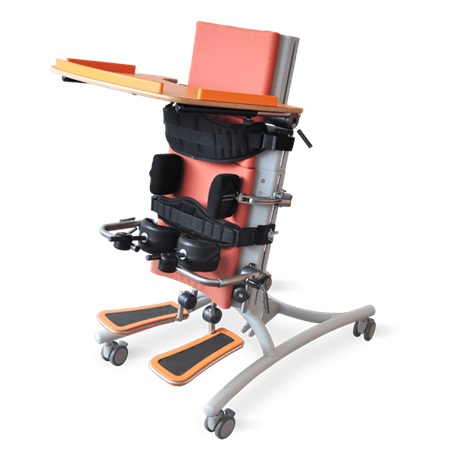

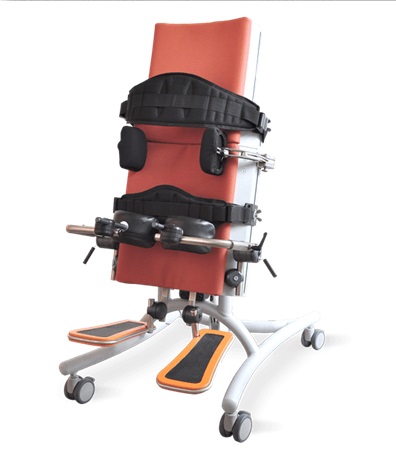

The application of a new concept for lying on the back or front has an anatomically shaped board. The advantage of all standing systems: the patient is supported the whole length and not only at various points of the body. The electric tilt adjustment eases the manual handling. No other product offers the same possibilities for treatment, permitting or the reception of complicated foot malposition’s. And thus offers the best p All tilting tables and standing frames are made up out of a frame, 4 swivel wheels, 2 foot plates (pair), 2 standard support cushions and 2 safety belts.

The upholstered anatomically shaped lying surface is extendable through extension cushions.The therapy table is functional in any position and additionally supports optimal head control training. The lowest walk in height is adjustable to 3 cm, almost at floor level. Prerequisite for guided standing up.

Indications

Indicated by the following foot malpositions:

  • flabby or contracted foot malpositions
  • Pes Equinus and heel calcars
  • Talipes varus
  • Other complicated foot malpositions

Scope of delivery

  • 2 standard support cushions
  • 3-D adjustable footplates
  • 2 safety belts
  • 4 swivel wheels

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Technical Specifications

Description

The application of a new concept for lying on the back or front has an anatomically shaped board. The advantage of all standing systems: the patient is supported the whole length and not only at various points of the body. The electric tilt adjustment eases the manual handling. No other product offers the same possibilities for treatment, permitting or the reception of complicated foot malposition’s. And thus offers the best p All tilting tables and standing frames are made up out of a frame, 4 swivel wheels, 2 foot plates (pair), 2 standard support cushions and 2 safety belts.

The upholstered anatomically shaped lying surface is extendable through extension cushions.The therapy table is functional in any position and additionally supports optimal head control training. The lowest walk in height is adjustable to 3 cm, almost at floor level. Prerequisite for guided standing up.

Indications

Indicated by the following foot malpositions:

  • flabby or contracted foot malpositions
  • Pes Equinus and heel calcars
  • Talipes varus
  • Other complicated foot malpositions

Scope of delivery

  • 2 standard support cushions
  • 3-D adjustable footplates
  • 2 safety belts
  • 4 swivel wheels

Additional information

MODEL No.

NV-1000 – Novum® Size 1 – tilt adjustment via gas spring
NV-1000-E – Novum® Size 1 – tilt adjustment via electro motor

Armpit height.

70.0 – 101.0cm

Chassis overall width

59.0cm

Chassis overall length

85.0cm

Overall height basic model¹

Max. 138.0cm

Overall height horizontal

60.0cm

Access height

from 3.0cm

Standard support cushion

large (width x height) 31.0 x 43.0cm
small (width x height) 25.0 x 24.0cm

Tilt degrees

-5° bis 90°

Product weight²

30.0 / 35.0kg

Maximum capacity

50.0kg
¹including all accessories (footplate to upper edge of supporting surface)
²including electric motor
