PORTABLE INTERFERENTIAL UNIT

Portable Interferential Unit

Overview

Why buy from Physiomed

Key Features

Built for clinical performance

No data was found

Description

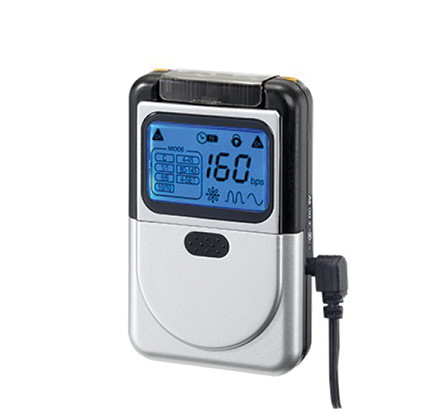

This Interferential Stimulator (IF) device is a battery operated device that includes two controllable output channels. Amplitude, Mode and Duration of the electrical impulses can be altered with the buttons. The controls are protected by a cover in order to prevent accidental changes to the settings. Slide the cover down to make adjustments to the controls.

FEATURES
Auto Sweep Settings, Adjustable Frequency, Clear liquid crystal display, Output adjustable 0 -60mA, Key lock facility, Outer material Plastic.

MODEL No. IF-908



Additional information

MODEL No.

IF-908

Channel:

Dual, isolated between channels .

Amplitude:

Adjustable 0-60mA peak into 500 ohm load each channel, constant current

Carrier Frequency:

4000Hz, Fixed (CH1)

Modulating Frequency:

4-160bps, Adjustable (CH2)

IF Frequency Modes:

9 modes, 1 constant mode, 5 frequency shift modes, 3 auto sweep Modes

Constant Mode:

4-160bps, Adjustable

Wave Form:

Symmetrical Balanced Sine Wave

Interference Pulse Frequency:

4-160 bps, Adjustable, 4 bps/step

Pulse Duration:

125 µs maximum

Timer :

15, 30 Minute selectable

Dimensions :

107 x 62 x 27mm

Weight:

Approx 150 g including battery
