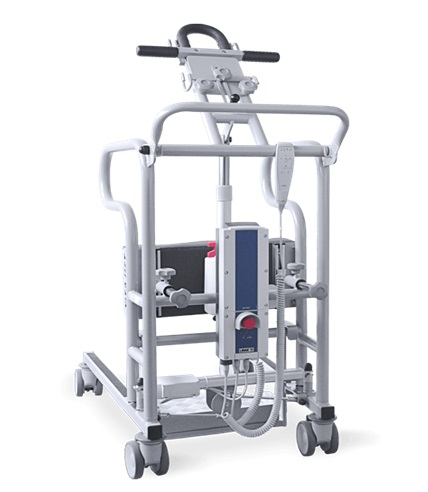

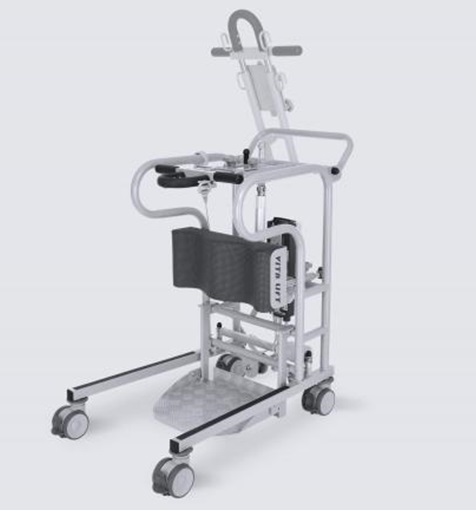

PATIENT LIFT – VITA LIFT

PATIENT LIFT

Description

This stand-up, walking, transport and transfer aid, suitable for domestic use, as well as in the nursing home and healthcare sectors, affords both stimulation and mobilization patient can be lifted very carefully – in accordance with physiological movement patterns – from a seated to a standing position and be moved directly to the bath, toilet or bed, all without effort. In this way, the patient’s leg musculature, sense of balance and circulation, among other things, is trained.

Due to its compact design, the Vita-Lift is ideal for use in very confined spaces. The electrical straddle adjustment allows a wheelchair to be pushed directly up to the footplate.The belt and knee supports are padded for comfortable transport of the patient. Lifting arm and knee supports are individually adjustable.

Also available is the option of two swivel- mounted hand grips for additional safety during the raising of the patient.For patients who are mobile with guidance and support and only require backup protection while standing, the footplate of the Vita-Lift can be removed out of the way.

Scope of delivery
Battery charger
Remote control
Emergency stop button
Electric width adjustment
Removable footplate
Wheel set with full brakes, Individually lockable
Optional Accessories
Elevated foot plate
Hand grip
Calf belt
Calf belt mounting
extensive sling program for patient lifter and  stand-up aids

Additional information

MODEL No.

VI 3000

Length

94.8cm

Width outside

58.0 – 96.2cm

Width inside

42.0 – 80.2cm

Overall height

100.4cm

Chassis height

16.0cm

Lifting arm height (extended)

89.0 – 154.0cm

Turning circle

ø 96.0cm

Electric motor

Volt 24

Main supply

Volt 24

IP Protection IP

IP Protection IPX4

Product weight

40.0kg

Maximum capacity

165.0kg
