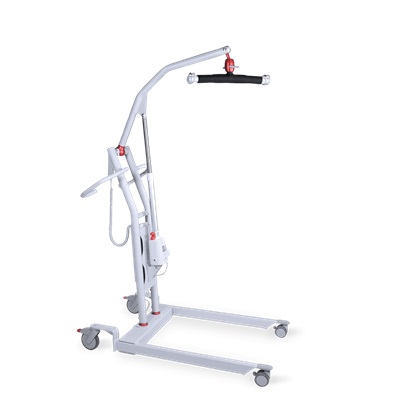

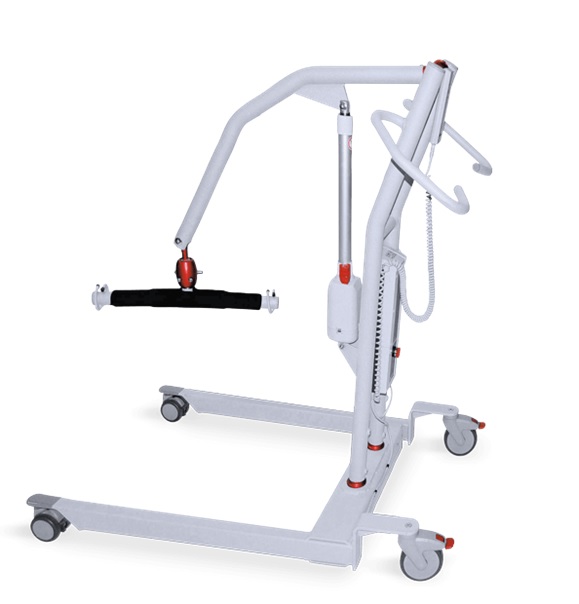

PATIENT LIFT - HOSPI LIFT

PATIENT LIFT

Description

This practical lifter is equipped with electrical parallel leg spreading, which enables easy and comfortable lifting of the patient out of a wheelchair or bathtub for example. A problem-free lifting of the patient from the floor is possible as well.With the base of the lifter being a standard height of 10.5 cm and standard size 7.5 cm double castors it is able to access under most nursing beds. Optional 5 cm double castors can be fitted, to enable a base height of 8 cm.The high-quality drive technology allows smooth and pain free raising and lowering of the patient. All functions are operated by a remote control handset.

Indications

  • Limited mobility
  • Restricted freedom of movement of the upper or lower extremities, e.g. quadriplegia, multiple sclerosis etc.

Scope of delivery

  • Electrical wide adjustment chassis

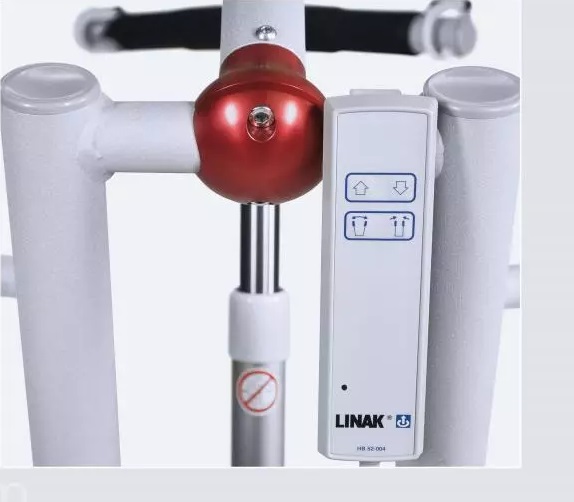

  • User friendly remote control
  • Integrated Charger
  • Emergency shutdown switch
  • Carry bar size 2
  • 4 wheels equipped with full brake

Accessories

  • Carry bar 4-point
  • Carry bar 3 sizes
  • Wide range of slings

Additional information

MODEL No.

HO-5000 HOSPI LIFT
HO-6000 HOSPI LIFT- MINI
HO-5250 HOSPI LIFT – XL

Overall height

125.0 – 200.0 125.0 – 200.0 125.0 – 200.0cm

Chassis length

110.0 cm 96.0 cm 110.0 cm

Chassis width (inside)

56.5 – 82.0 cm 56.5 – 82.0 cm 56.5 – 82.0 cm

Chassis width (outside)

65.0 – 90.0 cm 65.0 – 90.0 cm 65.0 – 90.0 cm

Under clearance

10.5cm 10.5cm 10.5cm

Wheel diameter front/rear mm 75 / 125 75 / 125 75 / 125

Turning circle

111.0cm 96.0cm 111.0cm

Wheel diameter front/rear

75 / 125mm 75 / 125mm 75 / 125mm

Jib height minimum

52.0 cm 50.0 cm 52.0 cm

Jib height maximum

170.0 cm 161.0 cm 170.0 cm

Product weight

65.0kg 55.0kg 65.0kg

Maximum capacity

200.0 kg 150.0kg 250.0kg

Electric drive

24 V / maximal 250 VA
IP Protection IPX4

Duty cycle

10% max. 2 Min. / 18 Min.

Emergency shutdown button

Yes

Emergency lowering (mechanical, electrical)

Yes
