OPTIFLEX-K1 KNEE CPM

Category

Description

Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.

FEATURES

  • Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
  • Only 38 inches (97 cm) long
  • Wide low-profile, closed-base frame for stability
  • Faster motor speed
  • Single screw drive
  • Reversible footplate for shorter legs
  • ROM -10 to 120
  • On-board power supply
  • Patient lockout feature
  • Accommodates patients 4 ft to 6.6 ft (1.2 m – 2 m)

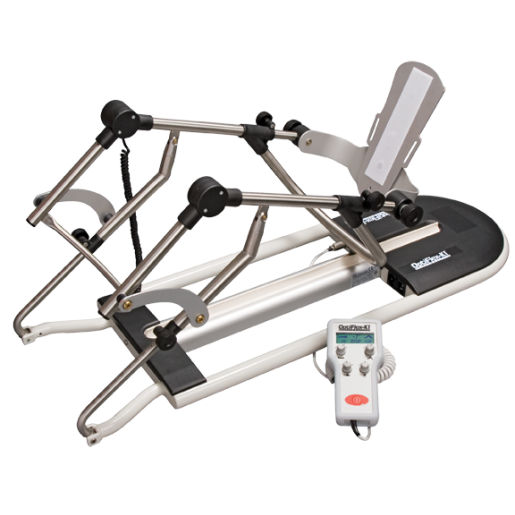

OptiFlex-K1 Knee CPM Unit with Classic Pendant

MODEL No. 2626

Additional information

MODEL No.

2026

Knee Flexion:

120°

Knee Extension:

-10°

Speed:

25° – 180°/minute

Pauses:

0 – 59 seconds

Force Reversal:

45 Kp of force* (built in)

Patient Height:

4 – 6.5 ft (1.2 – 2 m)

Calf Length Range:

10" – 22" (25.4 – 55.9 cm)

Thigh Length Range:

12" – 19" (30.4 – 48.2 cm)

Mains Power:

100V-240V, AC 50-60Hz

Unit Weight:

23 lb (10.4 kg)

Dimensions:

38" x 14" x 9" (97 cm x 36 cm x 23 cm)

Electrical Safety Class:

Class 1, Type B
