Compact non-focal (radial) shockwave therapy device by Physioled delivering up to 185 mJ with four working modalities and 1–22 Hz frequency. For tendinopathies, calcifications and a wide range of musculoskeletal conditions.
Overview

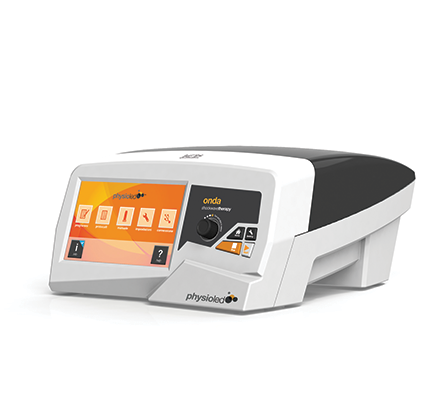

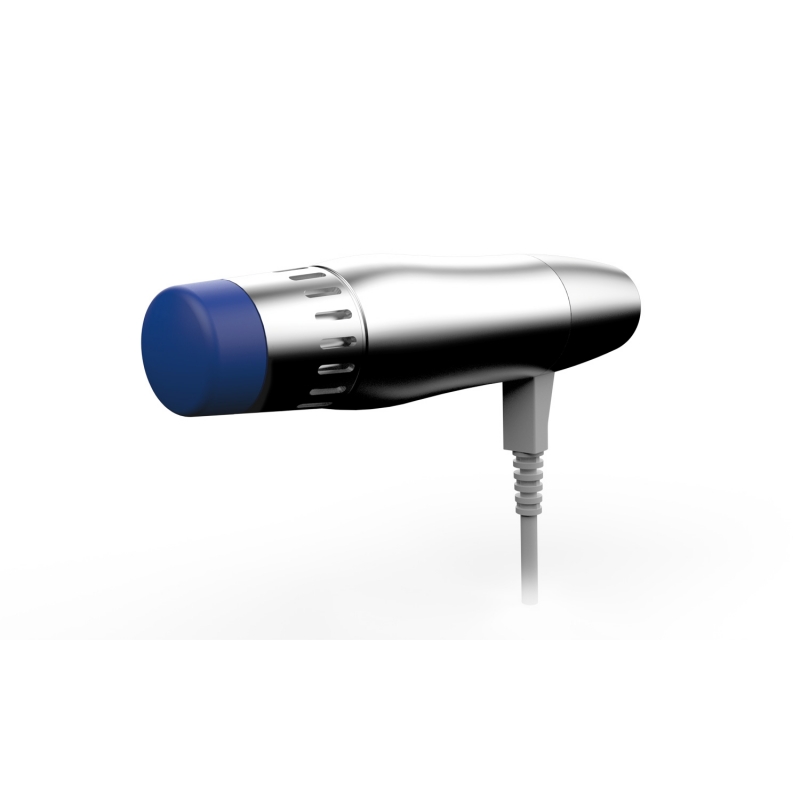

Onda is a non-focal (radial) wave therapy device that radically changes the therapeutic methodology for many musculoskeletal disorders. Shockwave technology generates an acoustic wave with a high energy peak, adjustable within a given frequency range. An accelerated bullet in the hand piece, driven by an electromagnetic impulse, generates a mechanical pressure wave that is transferred to a specific area, irradiating the tissue.
Mechanical energy creates bio-stimulation reactions in the tissue, giving positive influence across a wide range of orthopaedic, physiotherapeutic and antalgic conditions. Onda delivers up to 185 mJ MAX (comparable to around 6 bar of a pneumatic system) of variable-frequency energy in a compact design, and its better distribution of pressurised waves decreases the painful sensation while improving therapeutic feedback.
Key Features
Technical Specifications
| Energy | 60–185 mJ |
| Working mode | 4 modalities (continuous / 4 / 8 / 12 pulse) |
| Working frequency | 1–22 Hz |
| Power supply | 90–240 VAC / 50–60 Hz |
| Maximum output power | 250 VA |
| ONDA 001 | Onda Radial Shockwave |
Clinical Protocols
Recommended starting parameters by indication. Final protocols should be set by the treating clinician.
