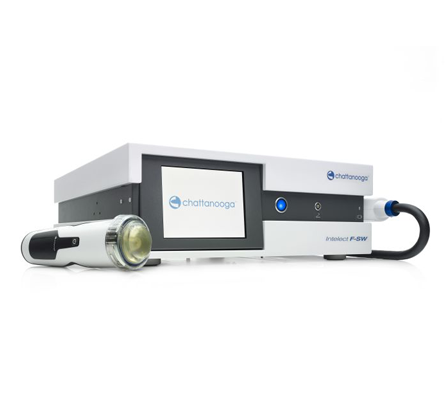

Intelect Focus Shockwave — Focused ESWT
In Extracorporeal Shockwave Therapy (ESWT), a wave is produced by a small explosion generated underwater inside an applicator. This wave is focused through a lens and transmitted into the tissue. The electromagnetically generated focused shockwave has high energy — around one hundred times more powerful than a radial pressure wave — making it optimum for a range of conditions in urology, orthopaedic indications, cardiology and neurology. Deep therapy regions can be treated safely and reliably, and the large focal zone provides enhanced targeting precision.
Clinical Benefits
- Activation of the healing cascade
- Enhanced blood flow
- Tissue regeneration
- Treats calcifications, stones and growths
Focused shock waves penetrate approximately 12 cm with pinpoint focus, and are preferably used in the treatment of deep target areas — enabling precise diagnosis and therapy of active and latent trigger points.
Technical Specifications
| F-SW Operating Mode | Single / continuous shock 1.0–8.0 Hz |
| F-SW Energy | 0.01 to 0.55 mJ/mm² |
| F-SW Capacity | 1000 bar |
| Mains Power | 100–240 VAC, 50–60 Hz |
| Power Consumption | Max 450 VA |
| Classification | MDD Class IIa |
| Control Device Weight | 22.1 kg |

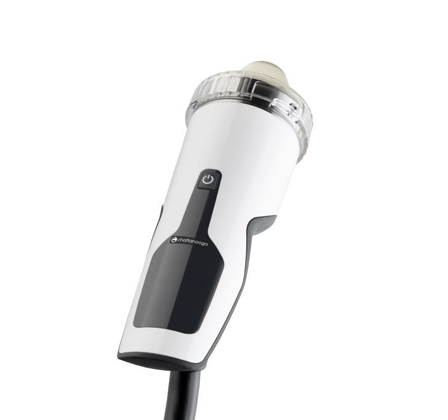

| F-SW Handpiece Weight | 770 g |
| Housing Dimensions | 450 x 165 x 530 mm |
Ordering Details
| 21090 | Intelect Focus Shockwave |
