INTELECT TENS/NMES/IFC

TENS/NMES/IFC

Category

Description

Intellect TENS
For symptomatic relief and management of chronic pain and acute post-surgical or post-trauma pain.Dual independent channels, Adjustable timer on standard and digital units, Adjustable frequency and pulse duration parameters. Basic and standard units feature three modes: burst, normal and modulation. Digital unit features five modes: Burst, Normal, Modulated rate and width, Strength duration and bi-pulse, Digital unit has easy-to-read LCD display and convenient digital controls.

Intellect NMES Portable
For the prevention of Disuse Atrophy as well as muscle re-education, increasing range of motion and Increasing circulation. Dual independent channels, Adjustable pulse amplitude, pulse frequency and contraction/relaxation time parameters. Digital unit features: Adjustable pulse width and timer parameters three stim modes: Synchronous, Constant, And Alternate, Easy-to-read LCD display and convenient digital controls.

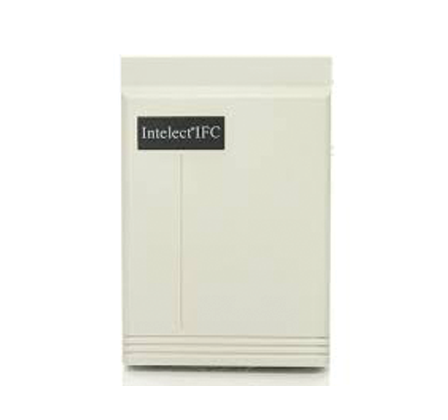

Intellect IFC:
Dual channel, manual selection for two or four electrodes, Adjustable pulse amplitude, interference frequency and difference frequency parameters. Four stimulation modes (frequency shifts): Continuous, 1/1, 8/8 and 10/10 Ramped, Includes 120V AC line cord adapter, Sliding cover for controls and battery.

Packaged unit includes TENS, or NMES unit, set of lead wires, package of DURA-STICK self-adhesive electrodes, 9 V battery, operations manual and convenient carrying case.

MODEL No:
77720 Intellect Tens Economy
77724 Intellect Tens Digital
77598 Intellect Tens Standard
77721 Intellect NMES Portable
77722 Intellect NMES Digital
77723 Intellect IFC Portable.

Additional information

MODEL No.

77720 – TENS
77721 – NMES PORTABLE
77722 – NMES- DIGITAL
77723-IFC PORTABLE

Channel:

Single for 2 pole or Dual for 4 pole- IFC -portable.
Dual Isolated: Tens, & NMES

Waveform:

Symmetric biphasic square- IFC
Asymmetric biphasic square pulse- NMES & Tens

Pulse Amplitude:

0~32 mA, adjustable (at 500 ohm load)- IFC
0-80 mA Each channel ( 500 ohm load) – NMES 7 Tens

Pulse Width:

125μ sec./phase- IFC
60-25μ sec. – Tens (std & economy), 50-300μ sec. – Digital
250 μ sec. – NMES – Portable
50- 300μ Sec. NMES- Digital

Pulse Frequency:

4000+/-10% Hz fixed- IFC
2-150 Hz Adj. _ Tens
5, 30, 100 Hz- NMES portable
2-120 Hz adj. NMES Digital

Dimensions:

42 x 41 x 97 cm

Pulsed Width:

125μ sec/phase- IFC
50-300μ sec. Tens- Digital
250μ sec- NMES portable
50-300μ -adj. NMES-Digital

Treatment Time:

1-60 minutes

Electrical Safety Class:

Class BF
