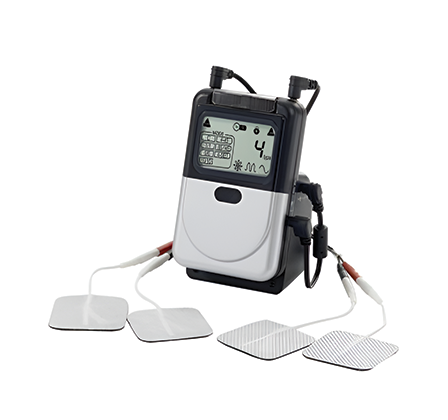

MEDFIT MINI 4 POLE INTERFERENTIAL UNIT

4  Pole Inferential Unit

Category

Description

The inferential stimulator (IF) device is a battery operated device that includes two controllable output channels. Amplitude, mode and duration of the electrical impulses can be altered with the buttons or knobs. The controls are protected by a cover in order to prevent accidental changes to the settings. Slide the cover down to make adjustments to the controls.

FEATURES
• Auto sweep settings
• Adjustable frequency
• Clear liquid crystal display
• Output adjustable 0-60 m A
• Key lock facility

STANDARD ACCESSORIES:
2 Patients Lead wires
1 pack of Self-adhesive electrode
Soft Carry case
Instruction Manual
Mains adapter
TENS patient guide.

MODEL No. IF 908

Additional information

Model no:

IF 908

Channel:

Dual, isolated between channels

Weight:

Approximately 150 grams battery included

Amplitude:

Adjustable 0-60mA peak into 500 ohm load each

Carrier Frequency:

4000Hz, Fixed (CH1

Modulating Frequency:

4-160bps, Adjustable (CH2

IF Frequency Modes:

9 modes, 1 constant mode, 5 frequency 3 auto sweep Modes

Constant Mode:

4-160bps, Adjustable

Auto Sweep:

4-45 bps, 80-145 bps, 4-SET bps

Frequency Shift:

Five modes, 1/1 abrupt shift, 6/6 abrupt shift, 6/6 ramped, 10/10 abrupt shift, 10/10 ramped, bps adjustable

Sweep Time:

15 seconds

Frequency Shift percent:

Frequency shifts from 30% Percent below the set frequency to 60% above and then return to 30% below the set frequency.

Output Configuration Wave form:

Quad polar (4 electrodes Symmetrical Balanced Sine Wave

Interference Pulse Frequency:

4-160 bps, Adjustable, 4bps/step bps/step

Pulse Duration:

125 Ìs maximum

Patient Compliance:

Display total treatment time Meter

Lock:

Prevents the patient from accidentally changing any of the set parameters

Timer:

15, 30 minute selectable

LCD:

Displays mode, bps rate, abrupt/ramp, timer, and channels

Max charge per Pulse:

15 Micro-coulombs Maximum

Low Battery:

A low battery indicator will show when the battery is low

Power Source:

9 Volt DC adaptor, 500mA or 9

Tolerance:

volt alkaline battery (not recommend due its short life) There may be +/-10% tolerance of settings and 20% tolerance of output.

Dimensions:

107x62x27mm
