Complete Ideal Plus traction system combining the Tru Trac traction unit with a belting harness, flexion stool and cervical attachment, mounted on the electric Ideal Plus traction couch. Delivers static, intermittent and cycling traction with a 270° pivoting touchscreen, 10 protocol slots and a height-adjustable, tilting couch rated to 225 kg.
Overview
The Ideal Plus Traction Package brings together the Tru Trac traction unit and the electric Ideal Plus traction couch into one ready-to-use clinical system, supplied with a belting harness, flexion stool and cervical attachment for both lumbar and cervical treatment.

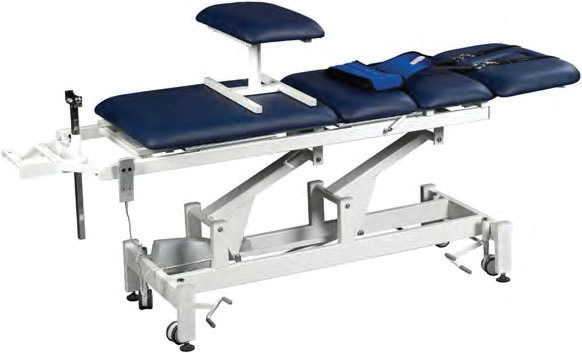

The Tru Trac unit delivers static, intermittent and cycling traction with user-defined hold, rest and treatment times, 10 protocol storage slots and a monochromatic touch screen that pivots 270°. The couch offers electric height adjustment, independently tilting head and leg sections, a breathing hole and retractable wheels, with a 225 kg weight rating.
Key Features
Technical Specifications
| Mains Power | 100–240 V, 50/60 Hz |
| Power Consumption | 75 W |
| Current Consumption | 3.2 Amps max |
| Weight | 14 kg (30 lbs) |
| Dimensions | 45 × 24 × 45 cm |
| Electrical Safety Class | Class 1, Type B |
| Safety Tests | IEC/UL/EN 60601-1, IEC/EN 60601-1-2, CAN C22.2 No. 601.1-M90 w/A2 — Meets MDD 93/42/EEC, CE 0413 |
| Minimum height | 470 mm / 18.1″ |
| Maximum height | 910 mm / 35.8″ |
| Cushion width | 700 mm / 27.6″ |
| Head section length | 410 mm |
| Mid section length | 680 mm / 26.8″ |
| Leg section length | 740 mm / 29.14″ |
| Total length | 2243 mm / 88.3″ |
| Head tilt angle | +80° to −20° |
| Leg tilt angle | +70° to 0° |
| Lift mechanism | Electric |
| Breathing hole | 1 |
| Retractable wheels | Standard × 4 |
| Weight rating | 225 kg / 496 lb |
Standard accessories
| 48082 | Patient Interrupt Switch |
| 27465 | Patient Data Cards (1x) |
| 48079 | User Manual on CD |
| 6870 | TTET-200 |
Optional accessories
| 66898 | Foot Switch |
| 86016 | Retractable Casters |
| 6840 | TTFT-200 (Economy Fixed Height Traction) |
Ordering
| TAB 400PKG | Ideal Plus Traction (Tru Trac unit with harness, flexion stool and cervical attachment) |
| TAB 400-B | Ideal Plus Traction Couch |
