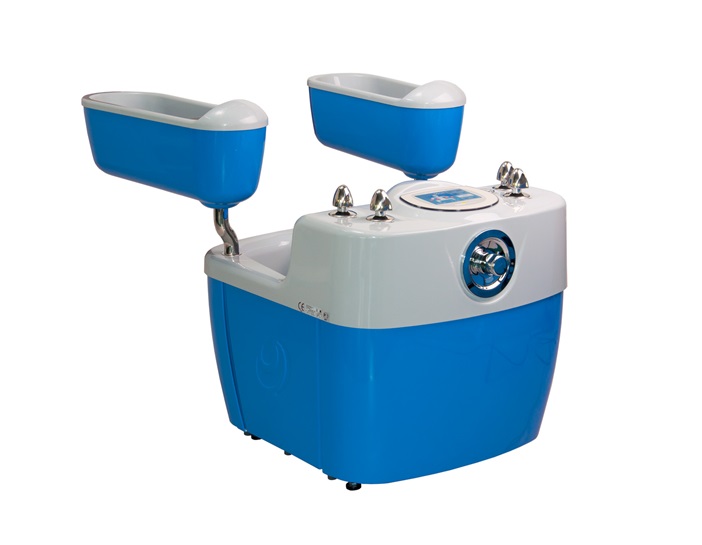

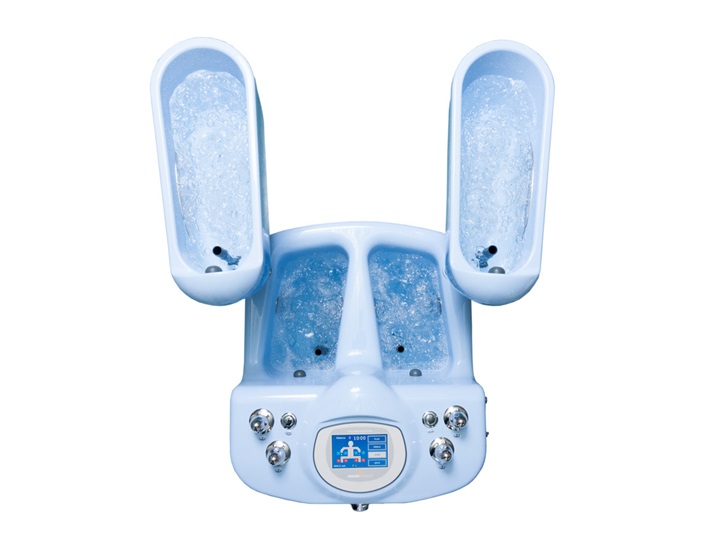

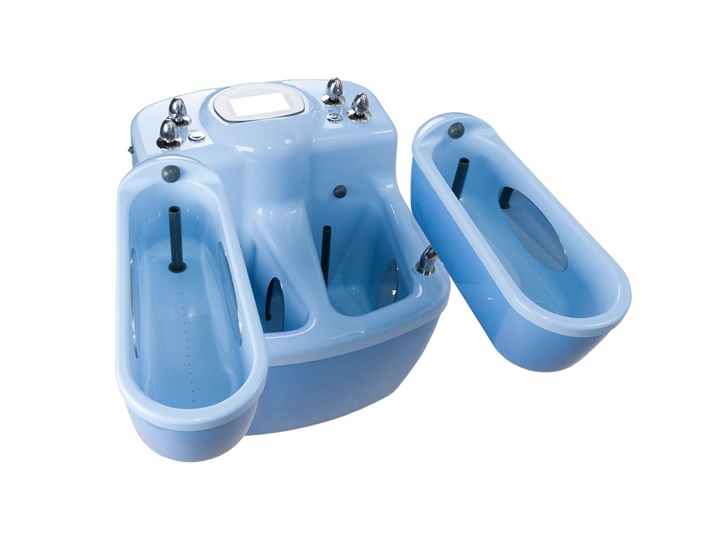

HYDROTHERAPY UPPER LIMB - ELECTRA

UPPER LIMB HYDRO MASSAGER

Category

Description

The Limb Galavnic Bath Electra Is Designed To Provide Application Of Galvanic Current In Water On The Upper And Lower Extremities. While Flowing From One Limb To Another, The Galvanic Current Causes Polarization Of The Tissues. This Polarization Can Be Considerred As An Intracellular And Extracellular Temporary Disorder Of The Dynamic Metabolic Derangement. The Body Protects Against This Condition By A Neural And Humoral Controlled Reaction. The Polarization Is First Of All Deminstrated By A Hyperaemy Mainly In The Capillary Zones.

The Limb Galvanic Bath Is Administerred Mostly At:

  • Central Nervous System Failures As For Spondylous Painful Syndromes, Neuralgia, Polyneuritis, Non-Paralytic Poliomyelitis And At Conditons Of Increased Or Low Irritabilities Of The Afferent And Efferent Nerves
  • Degenerative And Chronical Inflammatory Disorders Of The Body’s Motor System, Mainly At Disorders Of The Small Joints Of Hands And Legs, Rheumatic Diseases Of Muscles And Other Types Of Small Joint Rheumatism
  • Vasoneurosis, Spasticity Of The Vastus Muscle, Myoclonic Twitches, Latter Phase Of Sudeck’s Atrophy And At Dicsrease In The Muscle Tone Of Extremities

The Descending Currents Have Overall Calming Affect. To Achieve This, The Upper Extremities Are Connected To The Positive Pole Of The Source, While The Lower Ones Get Negative Polarity. When Connected In Reversed Polarity, The Application Stimulates The Vegetative Nervous System.

Current Type

  • G – galvanic DC current
  • SM – sine monophase, one way rectification 50 Hz
  • SD – sine diphase, two way rectification 100 Hz
  • SC – sine short period (CP), 1sec MF + 1 sec DF
  • SL – sine long period (LP), 5 sec MF + 10 sec DF zmena 1 sec
  • FM – Faraday MF
  • FD – Faraday DF
  • FC – Faraday with fast switching MF-DF
  • FL – Faraday with slow switching MF-DF
  • TM – triangle MF
  • TD – triangle DF
  • TC – triangle with fast switching MF-DF
  • TL – triangle with slow switching MF-DF
  • CM – saw MF
  • CD – saw DF
  • CC – saw with fast switching MF-DF
  • CL – saw with slow switching MF-DF

Additional information

MODEL No.

ELECTRA

TECHNICAL PARAMETERS.

Lower limb tank max. capacity 2×27 l
Lower limb tank useful capacity 2×14,5 l
Upper limb tank max. capacity 2×24,5 l
Upper limb tank useful capacity 2×13 l
Hot and cold water connections 2×3/4"
Max. hot water temperature 60°C
Power input 2300 VA
Power supply 230 V / 50(60) Hz
Current measurement accuracy +/- 10% from full range
Time measurement accuracy +/- 5s / hour
Cross tank current adjustment step max 0,2 mA
Max. speed of cross tank current change 4 mA/s
Single tank current adjustment step 2 mA
Max. speed of single tank current change 50 mA/s
Single tank current range 25 – 500 mA
Cross tank curret range 0 – 30 mA
Number of electrodes 9
Polarity selection each electrode
Polarity sngalization each electrode
Max. putput voltage 24 V
Protection against electrical accident class I
Protection by cover IP 54

WEIGHT.

56kg

DIMENSION ( L X W X H)

1280 x 950 x 950-975cm

CONTROL FUNCTIONS

Manual filling with stainless steel ceramics valves
(E1) – 7" full colour touch screen, programs, sevice menu, operating manual…
Real time and date display
Automatic plannig of the service check
Fully automated procedures process
In build programs/ number ● / 5
Unlimited No. of the new program creation ● / 25
Series of the programs up to 5 procedures
Manual filling with thermostatic mixer ●Manual discharge into the canalization
Hygienic shower 230
PROCEDURES
Electrotherapy- galvanic, diadynamic and farraday currents
Electrodes ● / 8+1
Airmassage 4 x 13 jets
EQUIPMENT
Complete drain away of the hydromassge system
Stainless steel components valve knobs, water inlet, shower holder etc.
