Compact, portable HI-Q High-Intensity Focused Ultrasound system for non-surgical facial lifting and skin tightening. Focal thermal coagulation points at the SMAS, dermis and subcutaneous tissue with 3.0 and 4.5 mm cartridges (1.5 mm optional), 7/4 MHz, up to 1.5 J and 30 mm treatment length.
Overview

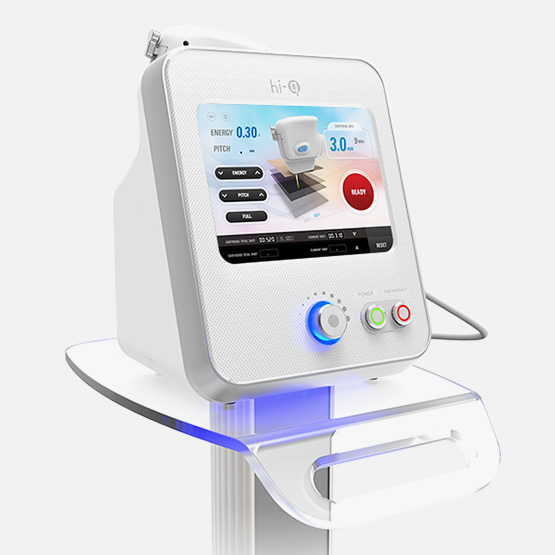

The HI-Q is a compact, portable High-Intensity Focused Ultrasound (HIFU) system for non-surgical facial lifting and skin tightening. It delivers focused ultrasound energy to selected depths beneath the skin, producing focal thermal coagulation points in the superficial musculoaponeurotic system (SMAS), deep dermis and subcutaneous adipose tissue without incisions or damage to the skin surface.
Interchangeable cartridges target 3.0 mm and 4.5 mm depths, with an optional 1.5 mm cartridge for superficial layers. Energy, pitch and treatment length are adjustable, so treatment lines can be planned to the patient’s anatomy, tissue thickness and degree of laxity. The controlled thermal points support tissue tightening and collagen remodelling; results vary with age, skin condition and technique.
The HI-Q suits aesthetic clinics, dermatology practices, skin-rejuvenation centres, medical spas and professional beauty clinics operated by trained practitioners.
Key Features
Technical Specifications
| Model | HI-Q Portable HIFU System |
| Energy source | High-Intensity Focused Ultrasound |
| Target layers | SMAS, deep dermis, subcutaneous adipose tissue |

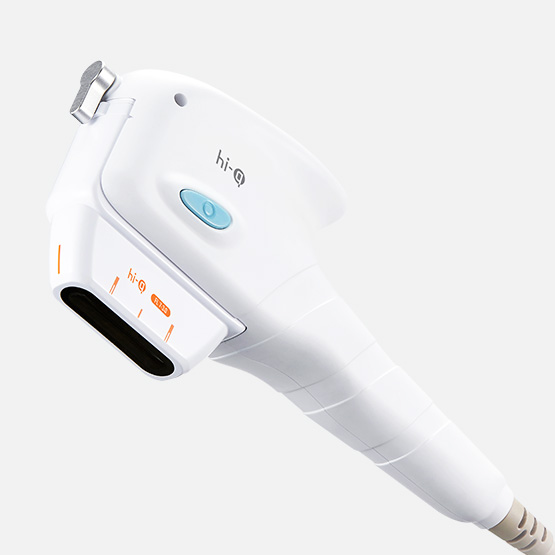

| Handpiece | 1 face handpiece |
| Frequency | 7 MHz / 4 MHz |

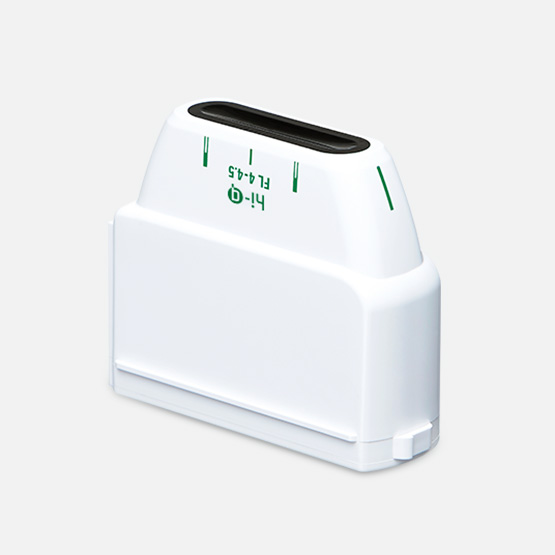

| Cartridge focal depth | 3.0 mm, 4.5 mm; 1.5 mm optional |
| Energy | Up to 1.5 J (0.05 J steps) |
| Pitch | 0.5–2.0 mm (0.1 mm steps) |
| Treatment length | Up to 30 mm |
| Treatment areas | Face and neck, within approved zones |
| Electrical | Free voltage, 100–220 V, 50/60 Hz |
| Dimensions | 275 × 240 × 345 mm (H) |
| Area | Guidance |
| Facial laxity | Assess laxity, skin thickness, anatomy and expectations before choosing areas and depths. |
| Jawline | Map the lower face carefully and avoid vulnerable nerves, vessels, glands and bony prominences. |
| Jowls | Plan conservatively and explain that HIFU improves mild laxity but cannot match surgical lifting. |
| Cheeks | Choose lines and depths to tissue thickness and manufacturer guidance; monitor comfort. |
| Eyebrow lift | Treat approved zones at superficial depths only; avoid the eye, eyelids and orbit. |
Use only according to the manufacturer’s instructions, local regulations and the practitioner’s scope of practice.
| Model | Description |
| HI-Q | Portable HIFU face-lifting and skin-tightening system |
Clinical Protocols
Recommended starting parameters by indication. Final protocols should be set by the treating clinician.
