COUCH - PODIATRY

PODIATRY CHAIR

Description

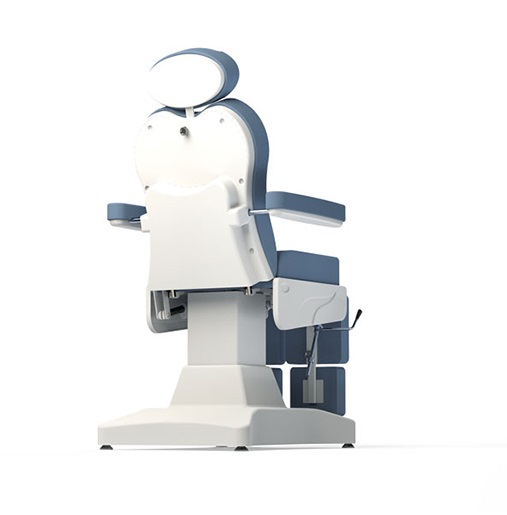

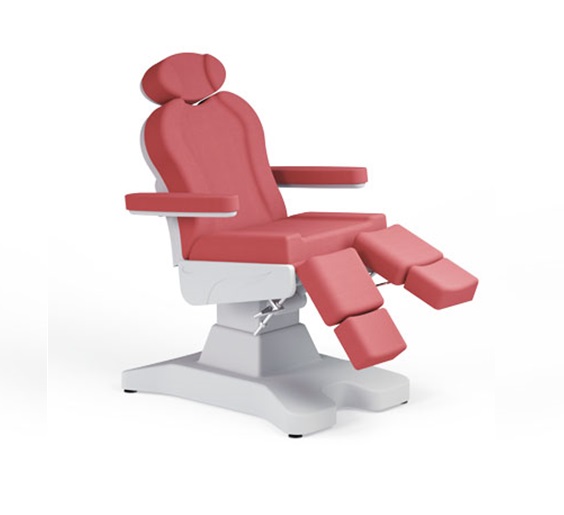

Podiatry consists of three main parts: back, seat, and foot. Thanks to 3 DC motors, it is possible to control the back, height and trendelenburg / reverse trendelenburg movements. The up / down height adjustment is made vertically by means of a special bearing system, so there is no change in position when the seat is raised. Covered with special vinlex material, the flooring is long lasting, easy to clean, waterproof and anti-bacterial. The abs cover outside the seat is designed to stay inside the floor and prevents dirt and dirt between the floor and the plastic. The steel construction is protected against corrosion by galvanized coating and electrostatic powder paint, and all are covered with easy-to-clean ABS plastics with anti-bacterial properties. Thus it has a very elegant appearance and robustness.
The arms move together with the back in parallel with the back movement in the back movement and can be easily disassembled and installed. The foot part consists of two parts and each foot piece can be manually fixed at any point by means of a special system. In addition, extension parts can be fixed at the desired point. The foot extension can be removed and installed.

Additional information

MODEL No.

PC 03 S

FEATURES

FULL LENGTH: 1735 mm
WIDTH: 545 mm
ARMRESTS WIDTH: 797 mm
MIN. HEIGHT: 650 mm
MAX.HEIGHT: 850 mm
BACKREST WIDTH: 523 mm
BACK REST LENGTH: 588 mm
SEAT WIDTH: 545 mm
SEAT LENGTH: 522 mm
FOOTREST WIDTH 250 mm
FOOTREST LENGTH : 240 mm
ARMREST LENGTH: 545 mm
ARMREST WIDTH: 103 mm
BACK ANGLE: 75 °
FOOT ANGLE: 90 °
BACK ANGLE 75 °
FOOT ANGLE 90 °
TRENDELENBURG / TRENDELENBURG 13 °
REVERSE TRENDELENBURG 0 °
HEADREST WIDTH: 190 mm
HEADREST LENGTH: 350 mm
FOOTREST WIDTH: 210 mm
FOOTREST LENGTH: 170 mm
FOAM DENSITY: 30
UPHOLSTERY FEATURE: ARTIFICIAL LEATHER
MAX. SAFE LOAD CAPACITY: 180 kg
PRODUCT WEIGHT: 105 kg
