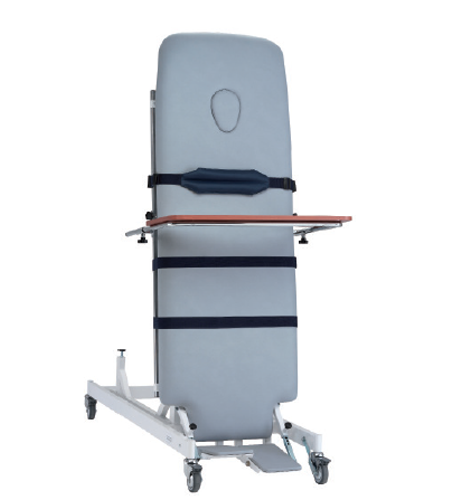

Fixed-height electric tilt table with a low 49 cm deck for easy wheelchair transfers. A 6000 N electric motor tilts the patient up to +88°. It comes with a folding, adjustable footboard, a set of 3 fixation belts, and four lockable castors. Maximum load 120 kg.
Overview
The Canova Tilt Table (ART250171) is built for early mobilisation and gradual verticalisation. Its fixed 49 cm height sits level with most wheelchair seats, and the design of the support frame allows smooth lifting and transfer of the patient, with 14 cm of transfer access.
A 6000 N electric motor drives positive tilt up to +88°, bringing the patient from lying to near-upright in a controlled way. The folding footboard adjusts ±15°. Three fixation belts hold the patient securely at every angle. Two fixed and two swivelling castors, all lockable, keep the table stable during treatment and easy to move between rooms. Padding and covering are fire-retardant, class 1IM.
Key Features
Technical Specifications
| Model | ART250171 |
| Dimensions (L × W × H) | 200 × 65 × 49 cm |
| Height | Fixed, 49 cm |
| Tilt | Positive, up to +88° |
| Tilt drive | Electric motor, 6000 N |
| Footboard | Folding, adjustable ±15° |
| Patient transfer access | 14 cm |
| Fixation belts | Set of 3 |
| Castors | 2 fixed + 2 swivelling, all with brakes |
| Upholstery | Fire-retardant, class 1IM |
| Max. load | 120 kg |
| ART250171 |
Canova |
