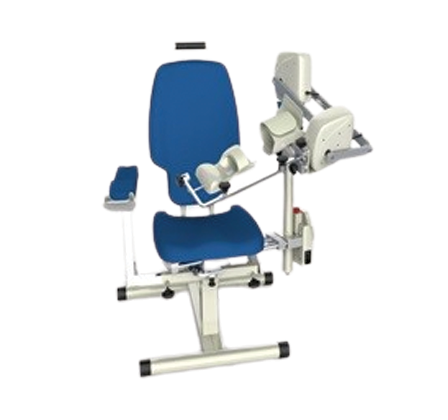

ARTUS – SHOULDER AND ELBOW CPM

Shoulder CPM

Overview

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Technical Specifications

Description

FEATURES

It can be used in a narrow space by changing easily left and right arm frame by front rotation method.

  •  Integrated structure of chair and moving frame.
  •  Passable to treat shoulder and elbow joint at the same time.
  •  Provides variety of joint exercise with easy operation.
  •  The height of shoulder is easy to adjust with a simple   operation.
  •  Allows to select speed : Uniform / Accelerated mode.Easy operation with touch panel and customized LCD.

MODEL No: Artus 703S

Additional information

MODEL No.

ARTUS-703S

Power Supply:

100Vac ~ 240Vac, 50/60 Hz

Speed:

1 ~ 5 level.

Timer:

1 ~ 99 min.

Count:

1 ~ 99

Pause:

0 ~ 9 sec.

Abduction / Adduction

20Ëš ~ 180Ëš

Rotation:

– 60Ëš ~ 90Ëš

Elbow:

0Ëš ~ 150Ëš

Flexion / Extension:

20Ëš ~ 160Ëš

Internal / External Rotation:

– 30Ëš ~ 90Ëš

Speed (Flexion)

60Ëš/min ~ 200Ëš/min

Speed (Rotation):

75Ëš/min ~ 200Ëš/min

Weight:

38kg

Dimensions:

(W×D×H) 706 × 647 × 925 (mm)
