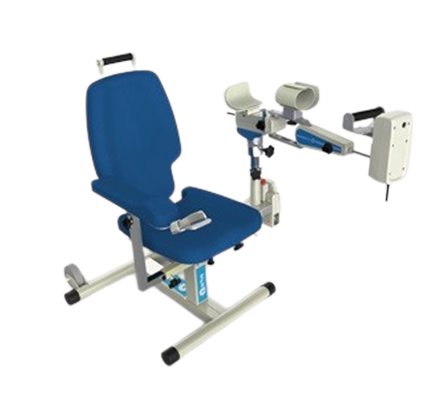

ARTUS-ELBOW CPM

CPM

Overview

Physiomed — Dubai, UAE

Key Features

Built for clinical performance

No data was found

Technical Specifications

Description

It can be used in a narrow space by changing easily left and right arm frame by front rotation method.

  • Integrated structure of chair and moving frame.
  • Passible to treat elbow and wrist joint at the same time.
  • Provides variety of joint exercise with easy operation.
  • The height of elbow is easy to adjust with a simple operation.
  • Available to rotate(Pronation and supination exercise) of wrist.
  • Progressive mode : Relieves pain by gradual increment of angle of rehabilitating exercise.
  • Oscillation mode : Maximizes its therapeutic effect by repeating exercise at each end- angle.
  • Allows to select speed : Uniform / Accelerated mode.
    Easy operation with touch panel and customized.

MODEL No. ARTUS 501E

Additional information

MODEL No.

ARTUS-501E

Speed

1 ~ 5 level.

Timer:

1 ~ 99 min.

Flexion/Extension/Pause

0 ~ 9 sec.

Flexion / Extension:

0Ëš~ 135Ëš

Internal / External Rotation:

– 90Ëš~ 50Ëš

Synchronized abduction and Rotation Elbow

0Ëš~ 135Ëš

Wrist Rotation

– 90Ëš~ 40Ëš

Speed (Elbow)

60Ëš/min ~ 200Ëš/min

Speed (Wrist Rotation)

75Ëš/min ~ 200Ëš/min

Weight

33kg

Dimensions:

(W×D×H) 706 × 647 × 835 (mm)
