SHOULDER CPM – S4

Artromot Shoulder Cpm

Category

Description

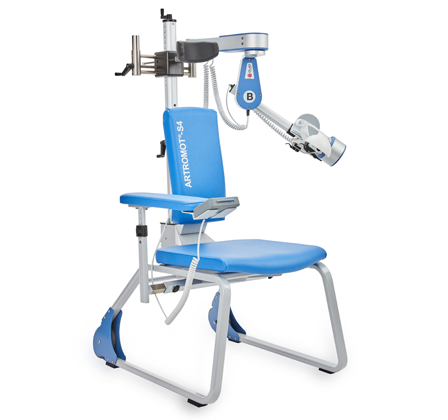

The ARTROMOT-S4 Continuous Passive Motion shoulder machine is the result of 30 years of experience in the shoulder CPM device business and more than 3 years of dedicated engineering, made in Germany.
Backed by three integrated motors, the new model for the following movements:
Anteversion & retroversion
Adduction & abduction
Internal & external rotation
Extension & flexion (elevation) with extended or flexed arm
The combination of these motion axes enables anatomically correct PNF movements as well as the proven “wave” or undulation exercise.
Combined with the tried-and-tested features, such as the patient chip card and the sturdy design, the new ARTROMOT-S4 has even more therapy options to offer.

MODEL NO. 80.00.084C-INT

Additional information

Adduction/abduction

0° / 30° / 160°

Anteversion/retroversion

110° / 0° / 10°

Elevation (Ex/Flex)

0° / 30° / 160°

Internal/external rotation

90° / 0° / 90°

Isolation

Enables separate exercises in all 3 directions of motion within a single treatment

Oscillation

Increases motion frequency
in the EROM

PNF

Movements following
the PNF pattern

Stretching

Gently increases the
range of motion

Wave

Undulating movements
resembling a
sideways figure eight

Applied part

Type B

Goniometer accuracy

±2°

Max. continuous load motion

13 kg

Max. continuous load on seat

175 kg

Patient height

approx. 120 to 210 cm

Adaptive load reversal

5-100 % of the
trigger threshold
tolerance range
(reverse-on-load
feature for patient
safety/spasm protection)

Cycles

5-20, adjustment of
the Isolation, Oscillation
and Stretching
repetitions

Device setup

Adjustment of the
basic settings (e.g.,
date, time or language)

Direction undulation

Adjustment of the direction
of motion in Wave
mode (Undulation)

Display mode

Toggles between detailed
view and standard view

Headrest

For comfortable, optimal
patient posture

Lockout functions

Locks individual functions,
prevents accidental
adjustment changes of set
parameters and facilitates
operation

Motor A, B & C ON/OFF

Isolated movements,
exclusively abduction/
adduction, anteversion/
retroversion, or internal/
external rotation

Motor controls

For direct range of motion
input

New patient

Restores the default settings
for new patients

Patient chip card

For storage of the therapy
parameters

Pauses

0-30 seconds
