DIGITAL TENS/EMS

DIGITAL TENS/EMS

Category

Description

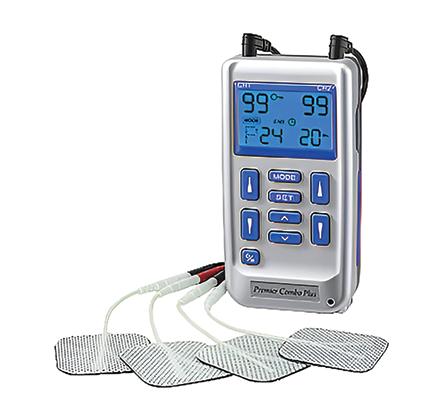

Premier is a highly user friendly full digital TENS/EMS used for effective pain relief and muscle toning. The intensity level and settings are controlled by press buttons. Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load. Output Type: TENS and EMS

TENS
Modes: B, N, M, S1, S2
Pulse Rate: Adjustable, from 2 to 150 Hz, 1Hz/Step
Pulse Width: Adjustable, from 50 to 300 microseconds, 10μs/step
Timer: Adjustable, from 5 to 60 minutes or Continuous.
Program: 12 preset programs

EMS
Mode:C(Constant), S(Synchronous), A(Alternate)
Ramp Time: Adjustable, 1~8 seconds, 1 Sec./ step,
On Time: Adjustable, 2~90 seconds , 1 Sec./ step,
Off Time: Adjustable, 2~90 seconds , 1 Sec./ step.
Pulse Rate: Adjustable, 2~150 Hz, 1Hz / step.
Pulse Width: Adjustable, 50~300μs, 10us / step.
Timer: Adjustable, 5-60 minutes or Continue. Adjustable in 5 minutes each step.
Program: 12 preset programs

Features
7 modes and 24 preset programs Built In Rechargeable Li-Ion battery
Flip top cover, 5 modes of option, Protective strips on both sides of unit, Large LCD showing all settings. Easy to use press buttons control, Simple directions for use inside the cover, Patient compliance meter up to 999 hours, Storage of the last used settings, Easy to open swing cover, Unbreakable, stainless steel belt clip, Treatment time countdown, Low battery indicator.

MODEL No. EM-6300A

Additional information

MODEL No.

EV-6300A

Pulse Amplitude

Adjustable, 0-110 mA peak into 500 ohm load each channel

Wave Form

Asymmetrical Bi-Phasic Square Pulse

Voltage

0 to 55V (Load: 500 ohm)

Power source

One 9 Volt Battery.

Channel

Dual, isolated between channels

Pulse Rate

Adjustable, from 2 to 150 Hz, 1 Hz/step

Pulse Width

Adjustable, from 50 to 300 microseconds, 10 µs/step

on time

Adjustable, 2~90 seconds , 1 Sec./ ste

Off Time

Adjustable, 2~90 seconds , 1 Sec./ step

Ramp Time

Adjustable, 1~8 seconds, 1 Sec./ step, The “On”time will increase and decrease in the setting value.

Mode

Six TENS Modes: B(Burst), N(Normal),M (Modulation Rate & Width),S1( Modulation Width), S2 (Modulation Width) and P Three EMS Modes:C(Constant), S (Synchronous), A(Alternate)

Size

11.8cm(L) x 6 cm(W) x 3.1cm(H)

Weight

157 grams with battery.
